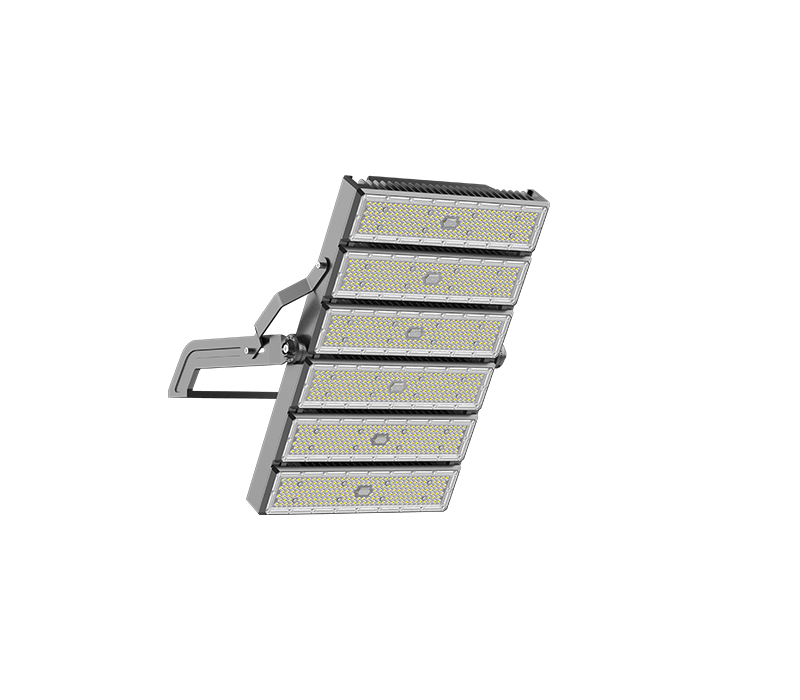

SkyWing V Sport & High Mast Light High Power LED Sports Fields Light
SkyWing V Sport & High Mast Light High Power LED Sports Fields Light
Light Source: CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar
LED Driver: Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics
Power range: 180W/200W/360W/540W/720W/900W/1080W/1260W/1440W
Voltage: AC120-277V/AC200-480V
Size: L150xW490xH140mm(MIN),L1020xW490xH155mm(MAX)
Weight: 4.5KG/8.5KG/12.5KG/16KG/20.5KG/24.5KG/29KG/33KG
CCT: 3000K/4000K/5000K/6000K
Optical : Beam angle 10°/25°/45°/60°/90°/80*140°/120*30*60°
Efficacy: 140lm/W standard, 150lm/W optional
CRI: Ra>80
IP Rating: IP66
IK Rating: IK08, IK10 Available
Installation: With U type installation bracket
Temperature: -25℃ to +50℃
Warranty: 5Years
Smart control: Photo sensor, motion sensor, Emergency battery
The SkyWing V series high power LED luminaire provides an impressive 2,040,000 lumen output provides an unmatched level of light output with a glare-free environment that is ideal for sports fields, stadiums, tennis courts, golf driving ranges, facades, general area and high bay spaces.
Thee self-contained light modules allow variability in both lumen output and light distributions to allow complete flexibility in programming functions. The high output Philips LUXEON 5050 LEDs are specifically designed to deliver high efficacy (uo to 170 lumens per Watt) with high flux density to enable tight beam control in directional and high lumen applications. The unsurpassed quality of light, volume of lumens, and superior efficacy enable leading performance and efficient solution development in a wide variety of lighting sectors. The state of the art optical assemblies are available in various beam configurations 10°/25°/45°/60°/90°/80*140°/120*30° /120° *60° beam angles which enable this luminaire to be used for general lighting or for directional illumination on a desired area by choosing different lenses.
Flicker-free and superior spill light control improves the safety and amenity of the space.
Modular design with adjustable beam direction for each module
Proprietary patented thermal management design to ensure low LED junction temperature
Reliable and high efficiency constant current Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics drivers
Heavy-duty, die-cast aluminum housing with corrosion-resistant polyester powder coat finish
Streamlined industrial design to complete a modern and stylish edge to any exterior.
Easy installation and maintenance
IP66 weather protection.
Specifications:
Model No. | YB-ISL-QCD-E180W | YB-ISL-QCD-E360W | YB-ISL-QCD-E540W | YB-ISL-QCD-E720W | YB-ISL-QCD-E900W | YB-ISL-QCD-E1080W | YB-ISL-QCD-E1260W | YB-ISL-SDD-E1440W |
Rated Power | 180W | 360W | 540W | 720W | 900W | 1080W | 1260W | 1440W |
Input Voltage | AC120-277V/AC200-480V | |||||||
LED Chip | CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar | |||||||
LED Driver | Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics | |||||||
Material | ADC12 Alu+Lens | |||||||
CRI | Ra>80 | |||||||
Power Factor | PF>0.95 | |||||||
CCT | 2700-6500K | |||||||
Light Efficacy | 140lm/W standard, 170lm/W optional | |||||||
IP Rating | IP66 | |||||||
IK Rating | IK08, IK10 Available | |||||||
Operation Temperature | ﹣25°C- +50°C | |||||||
Beam Angle | 10°/25°/45°/60°/90°/80*140°/120*30*60° | |||||||
Warranty | 5years | |||||||
Lifespan | 60,000Hrs | |||||||
Dimension | L150xW490xH140mm | L315xW490xH155mm | L428xW490xH155mm | L555xW490xH155mm | L668xW490xH155mm | L776xW490xH155mm | L889xW490xH155mm | L1020xW490xH155mm |
Packing | 510*180*170mm | 510*350*180mm | 510*460*180mm | 510*580*180mm | 510*700*180mm | 340*120*560mm | 550*800*180mm | 570*1050*180mm |
Weight | N.W: 4.5KG /G.W: 5.5KG | N.W: 8.5KG /G.W: 9.5KG | N.W: 12.5KG / G.W: 13.5KG | N.W: 16KG /G.W: 17.5KG | N.W : 20.5KG / G.W: 22 KG | N.W: 24.5 KG /G.W: 26 KG | N.W: 29KG / G.W: 30.5KG | N.W: 33KG /G.W: 34.5KG |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
