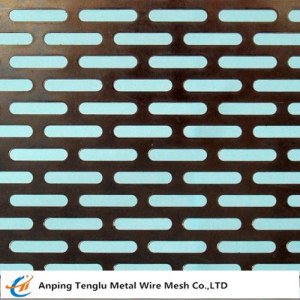

Slot Holes Perforated sheet
Anping Tenglu Metal Wire Mesh Co.,LTD
Slot Holes Perforated sheet
•Product Description:
The longitudinal shape of the hole looks interesting and at the same time is very docile e.g. for the production of radiator covers, various types of screens or airshafts. This types of holes are used in seasonal jobs by agriculturists for the purpose of grading.
This types of holes play an important role in agricultural seasonal jobs for the purpose of grading.
Moreover, oval shape of holes looks visually unusually, even though it is a rather simple type of perforation. Slot holes are therefore also used for decorative purposes.
Types of slot holes:
slot (lengthwise) holes in straight rows - stock code: Lg
slot (lengthwise) holes staggered - stock code: Lv
slot (lengthwise) holes atypical-as required (or made according ti drawing documentation) by the customer
•Materials: Steel, stainless steel, cut into galvanized sheets, aluminium
•Application:
interior/exterior, industrial purposes
industrial screens for sorting
staircase/balcony railing fillers, covers, partitions
sound/thermal insulation, ventilation shafts, metal furniture
•Packaging : Wooden box
•Our Service:
Materials certification
Customized size
•Specifications:
Thickness:
0.5,0.75,1,1.5,2,2.5,3,4,5,6,8,10,12mm
Perforated sheets - slot holes - lv
Hole |
Pitch |
Open area |
(mm) |
(mm) |
(%) |
1x20 |
6,32x24 |
26 |
1,5x20 |
7,5x24 |
33 |
2x20 |
8,88x24 |
37 |
2,5x20 |
10,8x24 |
38 |
3x20 |
12x24 |
40 |
3,5x20 |
14x24 |
40 |
4x20 |
16x24 |
40 |
5x20 |
9x25 |
21 |
6x25 |
22x30 |
43 |
Perforated sheets - slot holes - lg
Hole |
Pitch |
Open area |
(mm) |
(mm) |
(%) |
1x20 |
2,5x24 |
33 |
1,5x20 |
3x24 |
41 |
2x20 |
4x24 |
41 |
2,5x20 |
5x24 |
41 |
3x20 |
6x24 |
40 |
4x20 |
8x24 |
40 |
5x20 |
8x32 |
47 |
6x20 |
10x32 |
45 |
