Small electric boiler water heating

Small electric boiler water heating

Picture show of Solar Water Heater System SST
www.chinawatertank.com

HTB1w.QlGpXXXXXBXFXXq6xXFXXX1

alt

Details of Solar Water Heater System SST
www.chinawatertank.com

Solar Collector
PSHC-2C PSHC-2C B
Dimensions (L*W*D) mm 2015*1015*105 2015*1015*105
Shipping dimensionGross area m2 2070*1075*140 2070*1075*140
Gross area m2 2.05 2.05
Absorber area m2 1.72 1.72
Absorption % 95±2 95±2
Emission % 5±2 5±2
Max.operating pressure bar 6 6
Content L 0.95 0.95
Flow / return distance mm 1800 850
Connections G 3/4'' 3/4''
Angle of inclination . 0-90 0-90
Absorber eta plus-Cu
Absorber coating High selective vacuum coating
Heat transfer medium Polypropylene glycol / water mixture

Brief of Solar Water Heater System SST
www.chinawatertank.com

PaWT_01

Technical data of Solar Water Heater System SST
www.chinawatertank.com

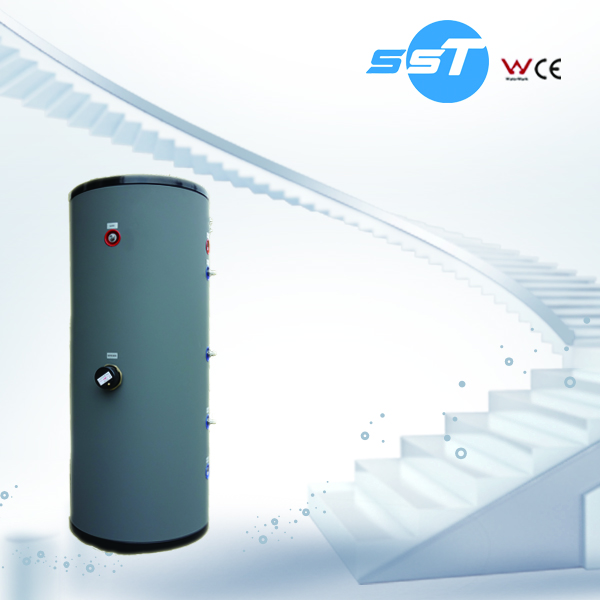

PAWT tank

Nominal capacity

L 50 / 80 / 100 / 120 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800

Inner tank diameter

mm Φ370 / Φ370 / Φ370 / Φ370 / Φ370 / Φ470 / Φ470 / Φ500 / Φ600 / Φ600 / Φ650 / Φ700 / Φ700

Inner tank material

SUS304 , SUS316L, duplex stainless steel (<500L)</span>

Out shell material

Galvanized steel with painting, stainless steel

Out shell color

White, silver-grey, blue, red

Max. working pressure

bar 6

Max. testing pressure

bar 10
Max. running temperature oC 90
E-heater Flange welded type, screw thread type (optional)
Mg. anode Optional

Material of Solar Water Heater System SST
www.chinawatertank.com

03

1.Material of out shell: Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.

2.Material of inner tank: Duplex stainless steel 2304/2205, SUS304, SUS316L are available.

3.Insulation: polyurethane resin foaming / PU soft coat.

4.Material of inner coils: Copper / stainless steel / wave stainless steel.

Unique technology/advantage SST
www.chinawatertank.com

0607

Feature & charecter of Solar Collector
Localisation : Yaohua Industrial Park 45th Fansheng Road Dagang Nansha Guangzhou City China, 511470 Nansha,
Personne à contacter : wendy lee, 0086 13631347021
