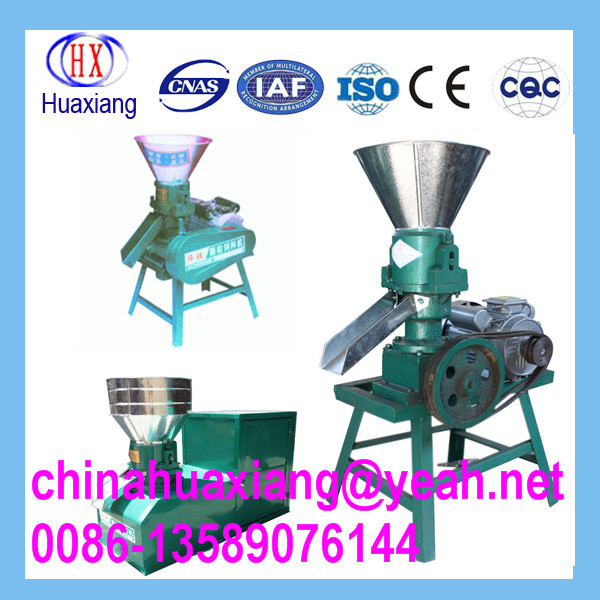

Small Flat Die Pellet Mill
Small Flat Die Pellet Mill
Description
Pellet Mill also called the pellet press, pellet machine, pellet making machine and so on.
But all these mean same machine, the press machine. The working principle of the wood pellet mill
is to compress the dust shape of all kind of raw material to be pellets through the mould (di e).
Because of different kind of mould, the
Pellet Mill can be divided into three kinds,
One is the ring (die) mould Pellet Mill ,
One is the flat mould (die) Pellet Mill ,
The third one is the combined sets, using the flat die structure but adopts the ring die,
we called it the efficient models sawdust pellet mill.
These three kinds of wood pellet mill apply to different kind of raw material and the output. So in order
to help you choose which kind of wood pellet mill, we list some models for your reference.
Technical parameter
(1)SKJ series flat die pellet mill:
| Model |
Output (KG/H) |
Power (KW) |
Diameter (mm) |
Weight (T) |
Size(mm) |
| SKJ120 | 70-100 | 3 | 4-6 | 0.05 | 1150×300×550 |
| SKJ150 | 100-300 | 7.5 | 4-6 | 0.15 | 1260×400×650 |
| SKJ2-200 | 300-500 | 11 | 4-6 | 0.2 | 1300×500×850 |
| SKJ2-250 | 400-700 | 15 | 4-6 | 0.5 | 1400×600×1000 |
| SKJ2-280 | 500-800 | 22 | 4-8 | 0.57 | 1700×600×1100 |
| SKJ2-300 | 600-1000 | 30 | 4-8 | 0.76 | 1860×670×1600 |
