Small-Glass-Sheet Double Edge Grinding Machine

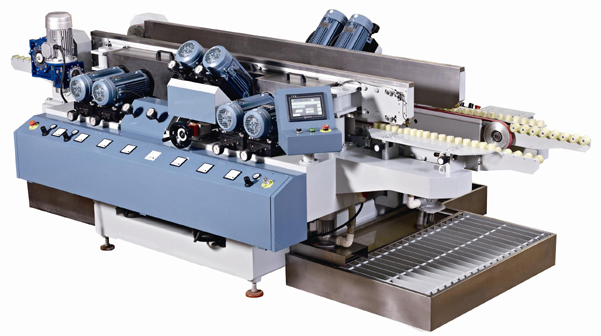

55mm Small Glass Double Edging Machine With High Precision and High Polishing

This machine uses 16grinding wheels with 19mm conveyor, can process glass minimum 55*55mm and thinnest 1mm (the thickest will be decided by processing request and wheels' quality). It's very suitable for all kinds of small size glass products which demand high-precision polishing. Compared to manual grinding process, single edge grinding machine and so call single belt double edge grinding machine, Grateful 55mm small glass sheet double edge grinding machine has below advantages:

1. Upgrade the processing accuracy and polishing brightness which improve small glass sheet edge grinding techniques to a new level.

2. Improve processing efficiency and save labor for mass production.

3. Enlarge the width span for glass edged, solve the narrow width span for single belt double edge grinding machine, also solve the problem that it need readjusting when different widths of glass edging.

4. Edge the smallest glass width for high precision and high polishing. This technique makes Grateful machine competitive.

Main Technical Parameters

Minimum Glass Processing Width: 55mm

Conveyor Width: 19mm

Minimum Glass Processing Thickness: 2mm

Chamfer Width: 1~2mm

Bottom Maximum Grinding Volume: 3mm

Diagonal Precision Error: ±0.3mm/m

Parallel Width Precision Error: ±0.1mm/m

Chamfer Width Precision Error: ±0.2mm/m

Width Position Precision Error: ±0.05mm

Thickness Position Precision Error: ±0.05mm

Polishing Level: Furniture Level

Side Collapse Phenomena: No

Glass Transmission Speed: 0.5~6.5m/min

Pneumatic Working Pressure: 0.7Mpa

Voltage/ Frequency: 380V/50Hz

Total Power: (4+2.2*number of grinding wheels )Kw

Working Table Height: 920±20mm

Machine Length: (250+10*grinding wheels)cm

Machine Width: (175+ Maximum Processing Width)cm Machine Height: 130cm
