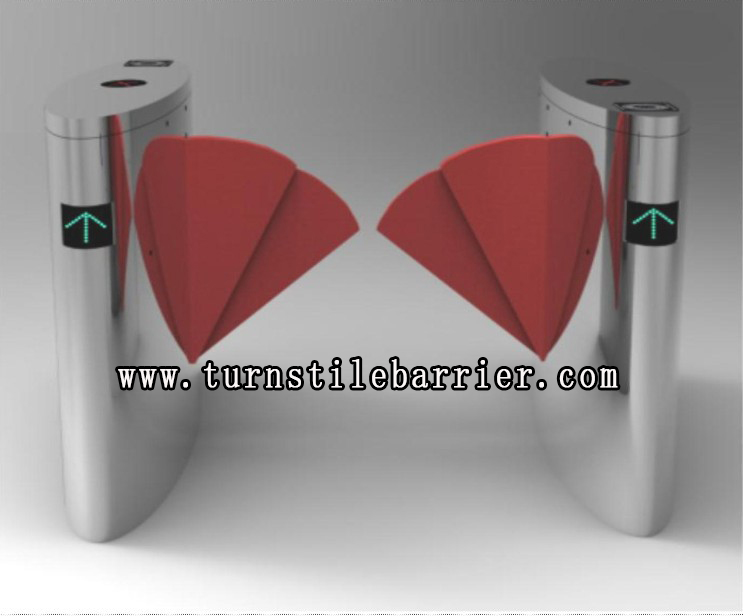

Smart flexible security 304 stainless steel flap barrier turnstile gate

Product Name: Flap gate

Model: RS788

The flap barrier possesses superiority over the traditional management mode.

Whether on the control of rights of passenger, tolling, attendance or counting,

traditional management mode requires a great deal of man power and material. Speed gate overcomes such inefficiency and greatly ease off the work to manage high flow of human traffic. The flap barrier features great ascetic looks, stainless finish and durable.

The system is provided with a standard electric interface and is easily integrated with various forms of access control. Special control system is equipped in the product to meet the requirement of fire control, so that the smooth passage flow is ensured, realizing a timely diverting of passengers.

Specification

Casing size: 1500*300*1000（MM）

Wing length： 380mm

Max lane width：900mm

Weight： 140Kg

Casing material： SS (304#)

Power voltage： AC220±10% V,50HZ

Drive motor： DC brush motor（24V)

Communication interface： RS485 ( standard)

Transit speed ：30-40 people/minute

Close and open time：0.6s

Features

One direction or bi-directional control

Can be integrated with most access control system

Flow direction guide

Anti-punch

Anti-panic

Normal close or normal open

Passable on power failure

Five pcs sensors on each casing

The lane is open for pass when authorized card is read

Close and open by remote control

Soft wing

Applications: subway, handicapped passageway, residential community, lobby, school, factory and so on.
