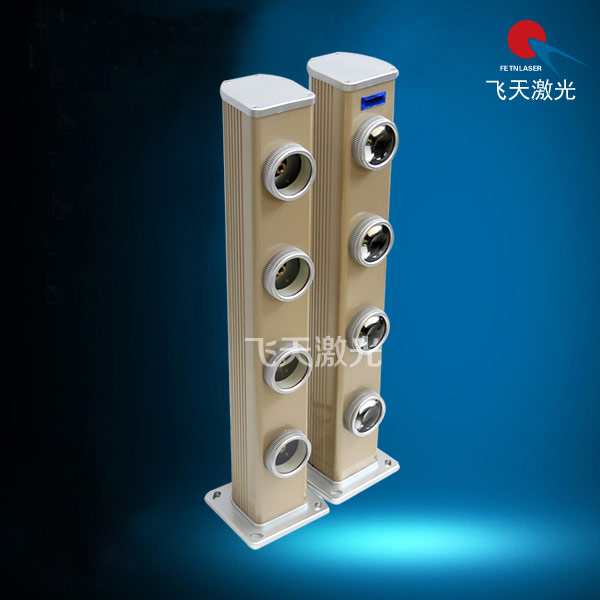

Smart intruder alarms laser beam alarm security protection
|
Item |
Technical indexes |
|
Model |
XL-B 50/100/200/300/500 D |
|
Laser wave length |
650nm, 808nm, 980nm |
|
Alert distance |
0- 500m |
|
Alert level |
Four-layer alert,layer spacing: 14.5cm |
|
Alarm mode |
Beam blocking alarm |
|
Working voltage |
DC10-30Vor AC220V |
|
Working current: |
Transmitting: 100mA ,receiving: 130mA,90mA when receiving alarm |
|
Alarm output mode |
A set of relay normally open/normally closed contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Anti-dismantling output pattern |
A set of normal close contact. Contact capacity: AC125V/0.5A、DC24V/2A |
|
Angles at the transmitting and receiving ends |
Divergence angle: <3′ Receiving angle: >10°</p> |
|
Optical axis adjustment angle |
Horizontal 30° Vertical ±30° (range adjustable.) |
|
Product dimension |
140mm(L)*140mm(W)*656mm(H) |
|
Chassis dimension |
140mm(L)*140mm(W)*10mm(H) |
|
Material |
Shell: Aluminum alloy ;Top cover, Base: ABS PC |
|
Product weight |
4.3KG (transmitting end: 2.4KG, receiving end: 1.9KG) |
|
Dimension of installation hole |
Four 20*10 holes in even distribution |
|
Alarm time |
2s±1s (1-30s optional) |
|
Response time |
5ms-500ms (adjustable) |
|
Working environment temperature |
-40℃-70℃ |
|
Protection level |
IP67 |
|
Type of laser light source |
Type I safety laser light source, in Class I |
|
MTBF |
> 120,000h |
