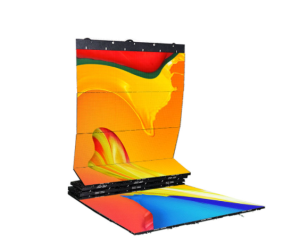

Smart Plus Rental Hanging LED Screen
Smart Plus Outdoor Rental LED Screen
ONUMEN Smart Plus series outdoor foldable hanging LED displays
High brightness and waterproof for outdoor use.
Enable customers to enjoy the charm of visual creativity outdoors.
Perfect presentation of the "visual Eden" without fear of rain erosion.
Flexible modular design for quick and easy installation, high IP water-proof and dust-proof ratings, allowing free choice of outdoor scenarios.
Smart Plus Foldable Outdoor LED Screen for Rent Highlights
Module size: 250mm * 375mm
360° foldable
High brightness and IP65 rating with waterproof grout for outdoor use
Hanging installation or magnet-based mounting
Discrete power supply
Easy installation without panels, steel structure and fans
Slim and light display for efficient and convenient transportation and installation
Remote control is optional for one-touch automatic lifting and lowering
Details of Smart Plus Outdoor Rental LED Display
Screen
|
Application Environment |
Outdoor |
|||
|
Model |
Smart plus 5 |
Smart plus 7 |
Smart plus 10 |
Smart plus 15 |
|
Pixel Pitch (mm) |
5.2 |
7.8 |
10.4 |
15.6 |
|
IP Rating |
IP65 |
IP65 |
IP65 |
IP65 |
|
LED Type |
SMD 1415 |
SMD 2727 |
SMD 2727 |
SMD 2727 |
|
Pixel Density (pixel/㎡) |
36864 |
16384 |
9216 |
4096 |
|
Driving Mode |
1-12 |
1-4 |
1-4 |
1-2 |
|
Gray Scale (bit) |
16 |
16 |
16 |
16 |
|
Max Brightness (nits) |
5400 |
5000 |
5000 |
5000 |
|
Max Refresh Rate (Hz) |
5000 |
8000 |
8000 |
8000 |
|
Module Resolution (pixels) |
48 * 48 |
32 * 32 |
24 * 24 |
16 * 16 |
|
Module Size (mm) |
250 * 375 |
250 * 375 |
250 * 375 |
250 * 375 |
|
Screen Thickness (mm) |
15 |
16.5 |
16.5 |
16.5 |
|
Weight (kg/㎡) |
12 |
12 |
12 |
12 |
|
Folding Angle |
360° |
360° |
360° |
360° |
|
Viewing Angle (H/V) |
120° / 120° |
120° / 120° |
120° / 120° |
120° / 120° |
|
Max Power Consumption (w/㎡) |
830 |
650 |
560 |
560 |
|
Output Voltage (V) |
DC24/48 |
DC24 |
DC24 |
DC24 |
|
Input Voltage (V) |
AC100 ~ AC240 |
AC100 ~ AC240 |
AC100 ~ AC240 |
AC100 ~ AC240 |
|
Max Height of a Panel (m) |
8 |
12 |
16 |
24 |
|
Best Viewing Distance (m) |
≥5 |
≥8 |
≥10 |
≥15 |
|
Brightness adjustment (levels) (digital) |
256 |
256 |
256 |
256 |
|
Brightness adjustment (levels) (analog current) (option) |
64-256 |
64-256 |
64-256 |
64-256 |
|
Contrast |
2500: 01: 00 |
2500: 01: 00 |
2500: 01: 00 |
2500: 01: 00 |
|
Connection Type (standard) (spare) |
2+14pin Soldering CS120 Connector |
2+14pin Soldering CS120 Connector |
2+14pin Soldering CS120Connector |
2+14pin Soldering CS120 Connector |
|
Short Circuit Protection |
Yes |
Yes |
Yes |
Yes |
|
Quick Maintenance |
Yes |
Yes |
Yes |
Yes |
|
Controlling Mode |
synchronous |
synchronous |
synchronous |
synchronous |
|
asynchronous |
asynchronous |
asynchronous |
asynchronous |
|
|
Installation Method |
Hanging |
Hanging |
Hanging |
Hanging |
|
Magnet mounting |
Magnet mounting |
Magnet mounting |
Magnet mounting |
|
|
Operation temperature (℃) |
-40 ~ 65 |
-40 ~ 65 |
-40 ~ 65 |
-40 ~ 65 |
|
Operation humidity (RH) |
0% ~ 90% |
0% ~ 90% |
0% ~ 90% |
0% ~ 90% |
|
Certificate |
ROHS FCC TUV CE |
|||
If you want to know more about led screen how it works, please visit our website.
As an led display supplier, we will do our best to meet all the needs of customers.
