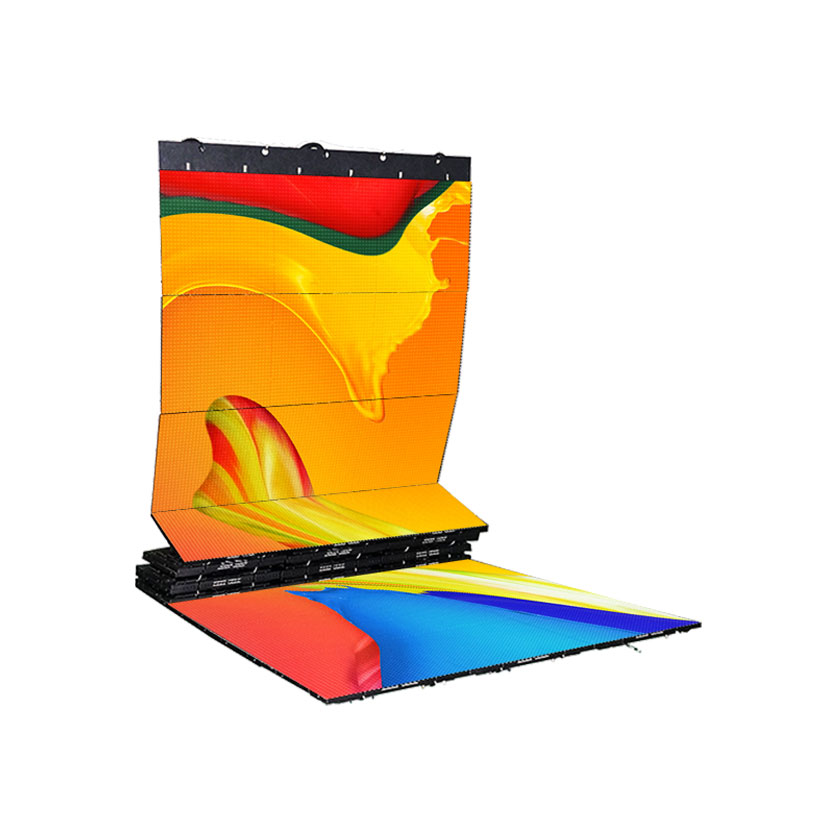

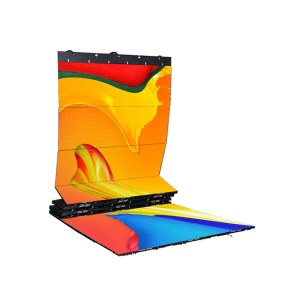

Smart Plus Rental Hanging LED Screen

Application Environment

Outdoor

Model

Smart plus 5

Smart plus 7

Smart plus 10

Smart plus 15

Pixel Pitch (mm)

5.2

7.8

10.4

15.6

IP Rating

IP65

IP65

IP65

IP65

LED Type

SMD 1415

SMD 2727

SMD 2727

SMD 2727

Pixel Density (pixel/㎡)

36864

16384

9216

4096

Driving Mode

1/12

1/4

1/4

1/2

Gray Scale (bit)

16

16

16

16

Max Brightness (nits)

5400

5000

5000

5000

Max Refresh Rate (Hz)

5000

8000

8000

8000

Module Resolution (pixels)

48 * 48

32 * 32

24 * 24

16 * 16

Module Size (mm)

250 * 375

250 * 375

250 * 375

250 * 375

Screen Thickness (mm)

15

16.5

16.5

16.5

Weight (kg/㎡)

12

12

12

12

Folding Angle

360°

360°

360°

360°

Viewing Angle (H/V)

120° / 120°

120° / 120°

120° / 120°

120° / 120°

Max Power Consumption (w/㎡)

830

650

560

560

Output Voltage (V)

DC24/48

DC24

DC24

DC24

Input Voltage (V)

AC100 ~ AC240

AC100 ~ AC240

AC100 ~ AC240

AC100 ~ AC240

Max Height of a Panel (m)

8

12

16

24

Best Viewing Distance (m)

≥5

≥8

≥10

≥15

Brightness adjustment (levels) (digital)

256

256

256

256

Brightness adjustment (levels) (analog current) (option)

64-256

64-256

64-256

64-256

Contrast

2500: 01: 00

2500: 01: 00

2500: 01: 00

2500: 01: 00

Connection Type (standard) (spare)

2+14pin Soldering CS120 Connector

2+14pin Soldering CS120 Connector

2+14pin Soldering CS120Connector

2+14pin Soldering CS120 Connector

Short Circuit Protection

Yes

Yes

Yes

Yes

Quick Maintenance

Yes

Yes

Yes

Yes

Controlling Mode

synchronous

synchronous

synchronous

synchronous

asynchronous

asynchronous

asynchronous

asynchronous

Installation Method

Hanging

Hanging

Hanging

Hanging

Magnet mounting

Magnet mounting

Magnet mounting

Magnet mounting

Operation temperature (℃)

-40 ~ 65

-40 ~ 65

-40 ~ 65

-40 ~ 65

Operation humidity (RH)

0% ~ 90%

0% ~ 90%

0% ~ 90%

0% ~ 90%

Certificate

ROHS FCC TUV CE
