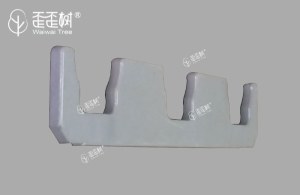

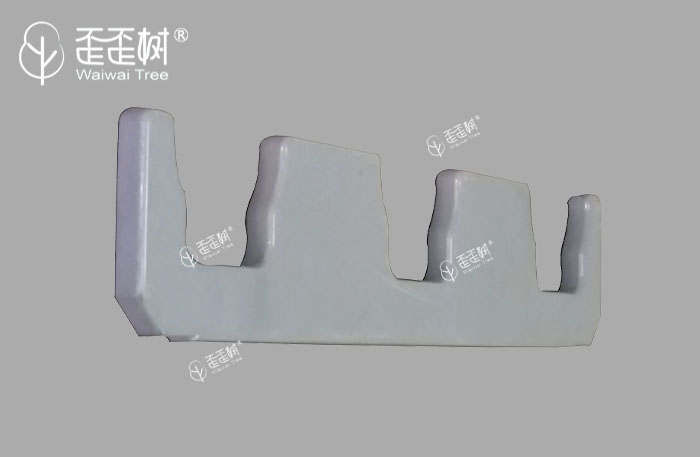

SMC Cable Braket
Quantité : 1 Prix : Product: 1-100 yuan
The SMC cable bracket is a combination consisting of a cable bracket, a post and a fixed pin. The material of the column and the pin is also made by the high temperature pultrusion of the FRP composite. The column can be arbitrarily cut length according to the needs, the height of the layer is adjusted, and the assembly is free. The cable bracket has various specifications to meet different lengths and load requirements.
Light weight, high strength, aging resistance, UV protection, more importantly, 1 mm can withstand voltages above 10,000 volts, it is a good insulation material.
Features: high insulation, chemical resistance, high fire resistance, good water resistance, accurate size, stable working performance, light weight, high strength, acid and alkali resistance, waterproof, moisture-proof.
SMC Cable Braket Specification
|
Project |
SMC Cable Braket |
Galvanized angle bracket |
|
Density (g/cm3) |
1.80 |
7.85 |
|
Specific strength |
167 |
90 |
|
Corrosion resistance (80°/100h) |
0.012 |
0.023 |
|
Insulation strength (kv/mm) |
14.0 |
Conductive |
|
Flame retardancy |
meets the FH-1 |
-- |
|
Water resistance (%) |
0.11 |
-- |
|
Corrosion resistance |
Corrosion、acid、alkali、salt resistant |
Corrosive, easy to rust |
|
insulation |
insulation |
Conduction |
|
Mechanical strength |
Top force 2.5kN deflection 1.0cm |
Top force 2.5kN deflection 1.2cm |
|
Lateral force 0.5kN |
Top horizontal offset 7cm |
Top horizontal offset 7cm |
|
Weight |
light |
weight |
|
Eddy current effect (loss) |
no |
Large loss |
|
Manufacturing process is difficult |
easy |
Many processes and long cycle |
|
Cable outer sheath scraping test |
No visible damage |
There is a little visible damage |
|
Raw material |
Cheap, resource-rich |
More expensive, partially imported |
|
Maintenance |
Free maintenance |
5-7 years need to be repaired once |
|
Installation process is difficult or easy |
Short time and easy to install |
Long time, difficult to install |
|
Use life |
30 years |
10 years |
Zhejiang Aobang Technology Co., Ltd. is one of the most professional sheet molding compound manufacturers in China, and we hope to gain recognition and support from our customers and to develop mutual cooperation.
