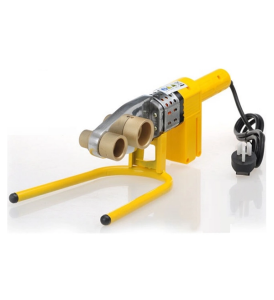

Socket Fusion Welding Machine
Socket fusion is a major welding method for small diameter . Socket fusion plastic pipe welding tools is mainly used for welding made from HDPE, PPR. Socket fusion welding involves the use of a fitting. The process operation is generally manual. The socket fusion welding machine cycle consists of a heating phase and a cooling phase. In socket fusion welding, a socket mounted on a hot plate is used to heat the outside surface of the pipe being welded. On the opposite side of the hot plate, a spigot is used to heat the inside surface of the injection moulded fitting.
Technical Specification of ppr socket fusion welding machine
|
Product name |
Socket fusion welding machine for HDPE pipe & PPR pipe |
||
|
Model |
20-32mm |
20-63mm |
75-110mm |
|
Welding range |
20mm, 25mm, 32mm |
20mm,25mm,32mm, |
75mm, 90mm, 110mm |
|
Power supply |
220/230V,50/60Hz |
220/230V,50/60Hz |
220/230V,50/60Hz |
|
Absorbed Power |
600W |
800W |
1500W |
|
Working Temperature |
260℃±10% |
260℃±10% |
260℃&±10% |
|
Packing Dimension |
115 x 50 x 320 mm |
175 x 50 x 360 mm |
175 x 50 x 395 mm |
|
Weight: |
1.75kgs |
1.82kgs |
3.16kgs |
|
Samples available |
Free sample available if small quantity need. |
||
|
Packing method |
Cartons |
||
|
MOQ |
5PCS for each model |
||
|
Production lead time |
Depending on the order quantity. |
||
|
Warranty time |
5 years for normal using |
||
|
Payment term |
T/T or LC at sight |
||
|
FOB loading port |
Ningbo or Shanghai China |
||
|
Place of origin |
China |
||
There are many plastic processing machine manufacturers, but we are one of the best choices for you.
