Solar Buffer Tank hot water heat
Quantité : 1 Prix : USD150
Solar Buffer Tank hot water heat

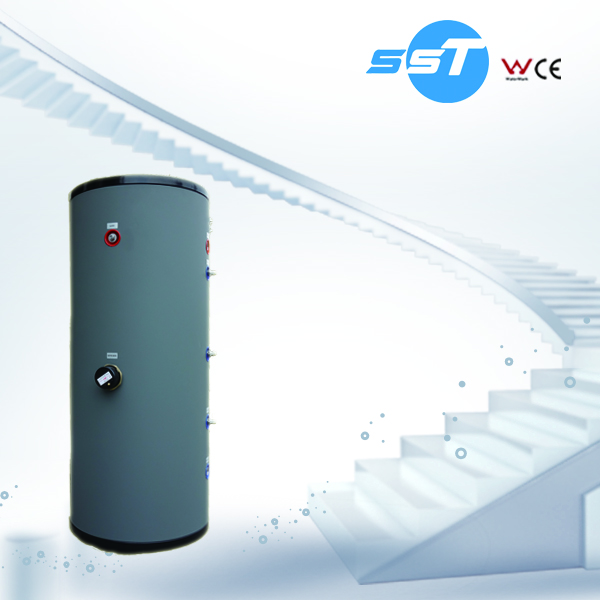

| Picture show of Solar Water Heater System |
SST www.chinawatertank.com |
| Details of Solar Water Heater System |
SST www.chinawatertank.com |
| Solar Collector | |||
| PSHC-2C | PSHC-2C B | ||
| Dimensions (L*W*D) | mm | 2015*1015*105 | 2015*1015*105 |
| Shipping dimensionGross area | m2 | 2070*1075*140 | 2070*1075*140 |
| Gross area | m2 | 2.05 | 2.05 |
| Absorber area | m2 | 1.72 | 1.72 |
| Absorption | % | 95±2 | 95±2 |
| Emission | % | 5±2 | 5±2 |
| Max.operating pressure | bar | 6 | 6 |
| Content | L | 0.95 | 0.95 |
| Flow / return distance | mm | 1800 | 850 |
| Connections | G | 3/4'' | 3/4'' |
| Angle of inclination | . | 0-90 | 0-90 |
| Absorber | eta plus-Cu | ||
| Absorber coating | High selective vacuum coating | ||
| Heat transfer medium | Polypropylene glycol / water mixture | ||
| Brief of Solar Water Heater System |
SST www.chinawatertank.com |
| Technical data of Solar Water Heater System |
SST www.chinawatertank.com |
|
PAWT tank
|
||
|
Nominal capacity |
L | 50 / 80 / 100 / 120 / 150 / 200 / 250 / 300 / 400 / 500 / 600 / 700 / 800 |
|
Inner tank diameter |
mm | Φ370 / Φ370 / Φ370 / Φ370 / Φ370 / Φ470 / Φ470 / Φ500 / Φ600 / Φ600 / Φ650 / Φ700 / Φ700 |
|
Inner tank material |
SUS304 , SUS316L, duplex stainless steel (<500L)</span> | |
|
Out shell material |
Galvanized steel with painting, stainless steel | |
|
Out shell color |
White, silver-grey, blue, red | |
|
Max. working pressure |
bar | 6 |
|
Max. testing pressure |
bar | 10 |
| Max. running temperature | oC | 90 |
| E-heater | Flange welded type, screw thread type (optional) | |
| Mg. anode | Optional | |
| Material of Solar Water Heater System |
SST www.chinawatertank.com |
1.Material of out shell: Galvanized-steel with painting, stainless steel, PU soft coat, aluminum-alloy.
2.Material of inner tank: Duplex stainless steel 2304/2205, SUS304, SUS316L are available.
3.Insulation: polyurethane resin foaming / PU soft coat.
4.Material of inner coils: Copper / stainless steel / wave stainless steel.
| Unique technology/advantage |
SST www.chinawatertank.com |
| Feature & charecter of Solar Collector |
SST www.chinawatertank.com |
1.PHNIX is NO.1 stainless steel water tank manufacturer in China to use butt-welding technology, duplex stainless steel material and developed hundreds different design tanks.
2. Our water tanks have gained CE and WaterMark certificates, and cooperated with customers to get NFand UL certificates. Good help for you to sale the certificated products!
3.Process high-class auto welding machines, connectors ' hole punching machines, efficiency water leakage test requirements and professional testing laboratory, which double ensure to offer customers long-term reliable high quality products.
4.The most important thing is PHNIX have a well-educated technical & QC engineers team and a quick-act sales team, so that we can offer customers reliable and satisfaction OEM and ODM service.
