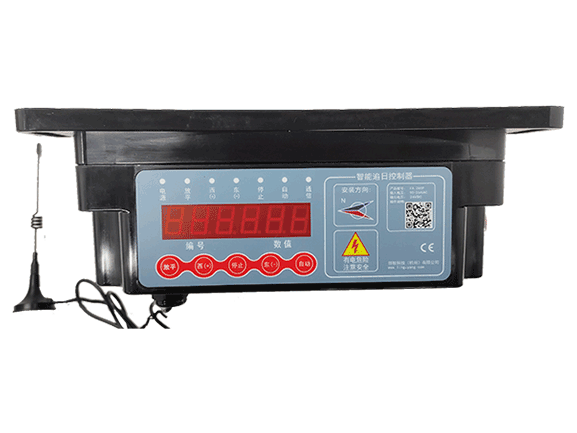

SOLAR TRACKER CONTROLLER TCU - FA 260P-24D02
One axis solar tracker 24D02 works on an AC power supply with 350W output, which matches DC motors. One axis tracker's input voltage is between 90-264VAC and its output is 24VDC.
Features: Matching power of 350W DC motor, it can carry heavy loads.
Advantage: This kind of single axis tracker controller equipment has stronger power and stable operation.
System Datasets of Solar Tracker Controller TCU - FA 260P-24D02
|
System Datasets |
|
|
Models of product |
FA 260P-24D01 |
|
Types of tracking panel |
horizontal single-axis/ titled single-axis |
|
Drive systems |
slewing reducer + DC motor / linear actuator + DC motor |
|
Motor power |
200W |
|
Daily power comsumption |
≤0.17kW.h |
|
Types of control |
active tracking closed-loop control (astronomical algorithm + location feedback) |
|
Mechanical Datasets |
|
|
Sizes |
262mm*182mm*120mm |
|
Box material |
polymer material Makrolon®6487 |
|
Water-proof level |
IP65 |
|
Display interface |
YES |
|
Keyboard interface |
YES |
|
Electrical Datasets |
|
|
Types of power supply |
L+N（two-phases input）90-264VAC（wide input voltage） |
|
Output voltage |
24VDC |
|
Wind protection |
YES |
|
Nighttime reset protection |
YES(confirmed) |
|
Disturbing protection |
YES (soft pounding protection, over current protection, over load protection) |
|
Anti-shadow tracking |
YES |
|
Wind speed protection |
10m/s-30m/s（3S）（customized） |
|
Types of communication |
ZigBee/LoRa（wireless）/ RS485（wired） |
|
Angle range of tracking |
±30°-±60°（customized） |
|
Models of AI control |
customized |
|
Network background |
customized |
|
Work temperatures |
-30℃-70℃ |
Note: Standard setting above. For customized setting, please contact the team of Lingyang Technology
We can offer sorts of solar panel trackers for sale, if you have needs to buy high quality solar panel tracker, please contact us.
