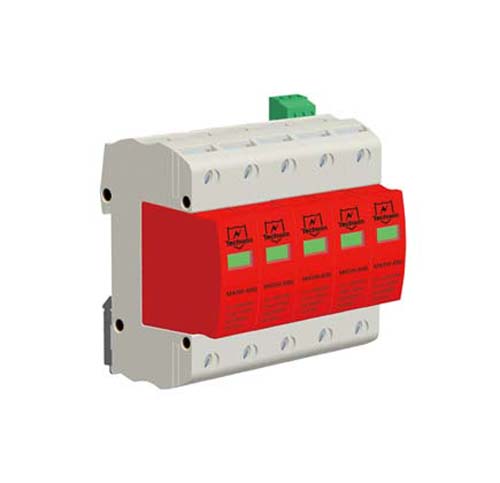

SPD for Windpower System
Quantité : 2000pcs pe Prix : Different products h
Wind power protection devices are mainly used to protect wind power system equipment, sensitive electric and electronic parts in turbine system from lightning strikes, widely applied in power line protection in wind power system's distribution box, and other AC distribution box.
Feature of Wind Protection Devices
1. Own designed temperature control circuit-breaking technology and built-in overcurrent protection circuit to completely avoid fire danger.
2. Working state and failure state are clear and intuitive.
3. Kevin wiring is workable.
4. Convenient installation and simple maintenance.
5. Remote alarm Status indicator
6. Exquisite workmanship, can work in hostile environments such as acid, alkali, dust, salt spray, and humidity for a long time.
Application of Wind Protection Devices
Applied to wind power protection system, Wind power generator.
Low voltage transformer box, Output of second power equipment, US and European box are applicable.
Technical Parameters of Wind Protection Devices
|
Model |
M40W-690 |
M40W-400 |
M40W-230 |
|
Lightning protection zone(LPZ) |
1-2 |
||
|
Standards Compliance |
IEC61643-11, EN60950 |
||
|
Classification |
Class C/Type 2 |
||
|
Nominal working voltage Un |
690V |
400V |
230V |
|
Max continuous operating voltage Uc |
700V |
440V |
250V |
|
Nominal discharge current (8/20µs) In |
20KA |
||
|
Max discharge current Imax (8/20µs) Imax |
40KA |
||
|
Follow current interrupt rating Ifi |
25KArms/100Arms |
||
|
Short-Circuit Current Rating Isccr |
25KA |
||
|
Temporary overvoltage (TOV)(L-N) Ut |
440 V / 120 min. – withstand |
||
|
Temporary overvoltage (TOV) [N-PE) Ut |
1200 V / 200 ms – withstand |
||
|
Protection level Up |
3000V |
2200V |
1500V |
|
Response time tA (L-N/N-PE) |
25ns |
||
|
Protection model |
L L L N-PE |
L L L-PE |
L N-PE |
|
Dimension |
90 (H)×90(W)×65(L)mm |
90 (H)×54(W)×65(L)mm |
90 (H)×36(W)×65(L)mm |
|
Mounting |
DIN-rail Mounting 35mm |
||
|
IP code |
IP20 |
||
|
Working conditions |
Temperature: -40 to 80℃, Relative humidity: ≤95％ |
||
Shenzhen Techwin Lighting Technologies Co., Ltd is a professional spd supplier, we provide solar power surge protector, lightning surge protector, signal surge protector and etc. Want to know more? Please contact us.
