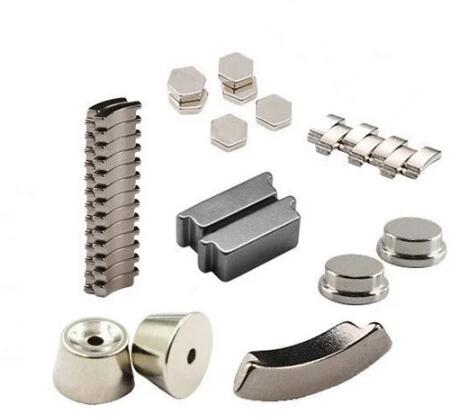

Special Shaped Neodymium Magnets
Tengye Magnets offers powerful rare earth neodymium cone magnets at good wholesale prices.
Special shaped cone neodymium magnets refer to magnets that are not the traditional round or rectangular shape. These magnets are typically custom-designed and fabricated to fit specific applications where standard custom magnet shapes may not be suitable, such as desien, advertising, eneineering, manuracturing, printing, flim, science construction, as well as for multiple commercial and industrial applications.
Special cone shaped magnets offer greater design flexibility and can be customized to fit specific applications. They are typically made from a combination of neodymium, iron, and boron, which are the most powerful and cost-effective materials for creating strong and durable magnets.
If you have any suggestions for our Rare Earth Neodymium countersunk magnets, please contact our sales team at +86-13675779918, email: susie@tengye-magnetic.com or send inquiry on website.
Specifications of Sepcial Shaped Neodymium Magnets
Temp.Coeff.of Br -0.09~-0.11%/℃ Specific Heat 0.12Kcal/(kg,℃)
Density 7.4-7.6g/cm3 Young's Modulus 1.6x1011N/m2
Vickers hardness 600Hv Poisson's Ratio 0.24
Tensile Strength 8.0Kg/mm2 Curie Temperature 310~340℃
Temp.Coeff.of Hc -0.50~-0.60%/℃ Thermal Conductivity 7.7Kcal/(m.h.℃)
Electrical Resistivity 114μΩ.cm Rigidity 0.64N/m2
Flexural Strength 25Kg/mm Compressibility 9.8x10-12m2/N
Coeff. Of Thermal Expansion 4x10-6/℃ Relative recoil permeabilityμrev 1.05
