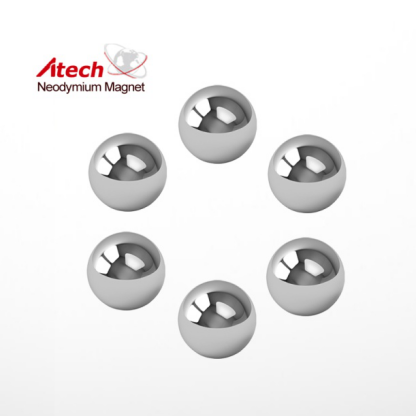

Sphere Neodymium Magnets
|
Material |
Sintered Neodymium Iron Boron |
|
|
Dimensions |
Diameter |
Min.1 mm—Max.60 mm |
|
Tolerance |
Standard +/-0.05mm, Min.+/-0.02mm |
|
|
Magnetization Orientation |
Axial / Diametrical |
|
|
Magnetic Properties |
Grade |
Max. Operating Temperatures |
|
N35-N52 |
80°C (176°F) |
|
|
33M- 48M |
100°C (212°F) |
|
|
33H-48H |
120°C (248°F) |
|
|
30SH-45SH |
150°C (302°F) |
|
|
30UH-40UH |
180°C (356°F) |
|
|
28EH-38EH |
200°C (392°F) |
|
|
28AH-35AH |
230°C (428°F) |
|
|
Remanence(Br) |
11,300 Gauss — 14,800 Gauss |
|
|
Coercive Force(Hcb) |
10,000 Oersted — 12,600 Oersted |
|
|
Intrinsic Coercive Force(Hcb) |
11,000 Oersted — 36,000 Oersted |
|
|
Magnetic Energy Product (BH) |
33M GOe — 53M GOe |
|
|
Surface Treatment |
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more. |
|
