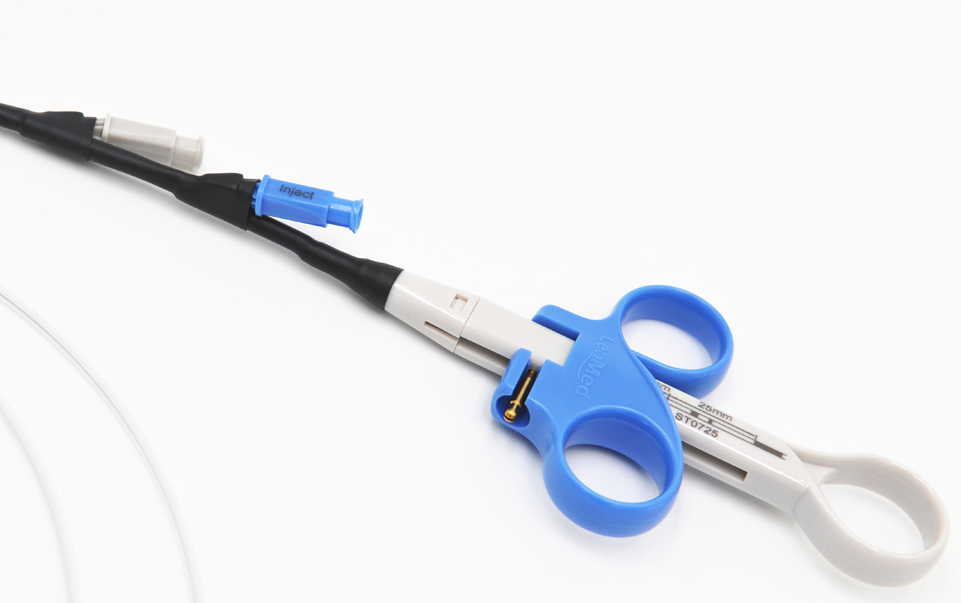

Sphincterotome
Quantité : 25,000 pie Prix : 5 - 150USD
Used for cannulation of the ductal system and for sphincterotomy, if preloaded, also aids ERCP operation in the stenosis of bile duct difficult stricture.
Features of Sphincterotome
Tapered tip enables easy cannulation.
Insulating coating minimizes the risk of tissue damage as well as endoscopic contact.
Pre-curved tip assists cannulation efficiency and reduce operation time.
Colored markers for precise positioning under endoscopic view.
Double-lumen and triple-lumen are both available.
Specification of Sphincterotome
Sphincterotome (OTW)
REF standard |
Structure |
Tip Length (mm) |
Cutting Length (mm) |
Working Length (mm) |
Compatible Guidewire |
Minimum Working Channel (mm) |
Unit/Box |
ST0425N |
3-lumen |
4 |
25 |
1900 |
0.035 |
2.8 |
1 |
ST0430N |
3-lumen |
4 |
30 |
||||
ST0725N |
3-lumen |
7 |
25 |
||||
ST0730N |
3-lumen |
7 |
30 |
Sphincterotome (Preassembled with Guide Wire)
REF |
Structure |
Catheter |
Tip Length |
Cutting Length |
Minimum Working Channel (mm) |
Guide Wire |
Unit/Box |
||||
Standard |
Outer Diam. (mm) |
Length (mm) |
(mm) |
(mm) |
|
Length (mm) |
Tip Shape |
Hardness |
|||
ST0425NGW0206 |
3-lumen |
2.4 |
1900 |
4 |
25 |
2.8 |
0.035 |
4500 |
Straight |
Normal stiff |
1 |
ST0430NGW0206 |
3-lumen |
2.4 |
1900 |
4 |
30 |
0.035 |
4500 |
||||
ST0725NGW0206 |
3-lumen |
2.4 |
1900 |
7 |
25 |
0.035 |
4500 |
||||
ST0730NGW0206 |
3-lumen |
2.4 |
1900 |
7 |
30 |
0.035 |
4500 |
||||
ST0425NGW0230 |
3-lumen |
2.4 |
1900 |
4 |
25 |
0.035 |
4500 |
Super stiff |
|||
ST0430NGW0230 |
3-lumen |
2.4 |
1900 |
4 |
30 |
0.035 |
4500 |
||||
ST0725NGW0230 |
3-lumen |
2.4 |
1900 |
7 |
25 |
0.035 |
4500 |
||||
ST0730NGW0230 |
3-lumen |
2.4 |
1900 |
7 |
30 |
0.035 |
4500 |
As one of the professional endoscopy products manufacturers, we also have papillotome for sale, if you have any needs, contact us.
