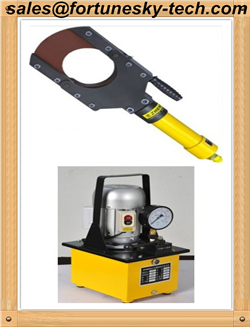

Split Hydraulic Cable Cutter CPC-150H

Name: Split Hydraulic Cable Cutter

Model: CPC-150H

Output: 18TON

Length: 670mm

Weight: 25KG

Cut Range: 150mm diameter of copper or aluminum armored cable, wires, telephone cables.

Attention: Do not cut steel core cable.

Split Hydraulic Cable Cutter Description:

1.) Convenience of cut jobs in the distribution box, suitable for quick cutting high pressure PE, IV electric wires, telephone cables.

2.) High-carbon steel blade solid tungsten heat treatment HRC-65 degrees

3.) Exclusive of pumps which should be sold separately, associated with the use of CP-700 Series Pump.

4.) With a PT3 / 8 "high pressure fittings.

Electric High-pressure Pump Description

1.) There are high and low pressure two-stages design, fuel output fast, easy to operate.

2.) This style has foot paddle and manual types, attached 2 meters long fuel tubing, you can purchase any longer.

3.) Pressure can be kept mid-suspension, the internal design on safety protection for hydraulic pressure.

4. ) Operation output pressure 63Mpa, quick connectors, PT3 / 8 "-19 .

5. ) Oil must be replaced every six months.

Model No.: FS-ZHH630A

Output Pressure: 63Mpa

Flow: 1L/Min

Voltage: 220V/380V

Fuel Tank Volume: 8L

Motor Power: 0.75KW

Speed: 1400 R/Min

Size: 380*300*510mm

Package: Wooden Case
