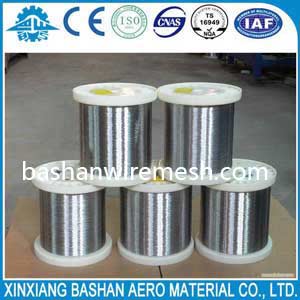

Spring wire with diameter 1.0 mm to 5.0 mm

Quantité : 100000kg   Prix : $2.0/kg

Product Description:

Chemical Composition for Spring wire with diameter 1.0 mm to 5.0 mm.

And the form is as follows:

Chemical Composition for Types of Stainless Steels

Type AISI

C %

Mn %

P %

S %

Si %

Cr %

Ni %

Mo %

302

<0.15</span>

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

17.0-19.0

8.0-10.0

_

304

<0.08</span>

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

18.0-20.0

8.0-10.50

_

304H

0.06-0.10

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

18.0-20.0

8.0-10.0

_

316

<0.08</span>

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

16.0-18.0

10.0-14.0

_

321

<0.08</span>

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

17.0-19.0

9.0-13.0

_

347

<0.08</span>

<2.00</span>

<0.045</span>

<0.03</span>

<1.00</span>

17.0-19.0

9.0-12.0

_

Spring wire with diameter 1.0 mm to 5.0 mm

Wire Type

Diameter

Elongation

Tensile Strength

Spool type

Weight /Spool

Material

Coarse Wire

5.5--1.0mm

≥ 25%

≥ 650Mpa

Barrel, Coil

50kg, 100kg /barrel

304, 304L, 308, 316, 316L, 321, 410, 430

Medium Wire

1.0--0.09mm

≥ 25%

≥ 650Mpa

OB80, DIN160, DIN200

500g-2kg /spool

304, 304L, 316, 316L, 321

Fine Wire

0.09--0.02mm

≥ 25%

≥ 700Mpa

OR80, KB80, HK100

150g-500g /spool

304, 316, 316L

Our Certifications:

1)Passed ISO9001: 2008 quality certificate
2)Passed ISO/TS16949: 2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93

Our Company:

Xinxiang Bashan Aero Material Co., Ltd.

In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)

Basahn factory affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, metal wire mesh, filter element, special filtration component and wire thread insert.

Contact Supplier:

Localisation : Daoqing Road NO.5, 453000 Xinxiang,
Personne à contacter : Maggie Guan, +86 373 3091998
