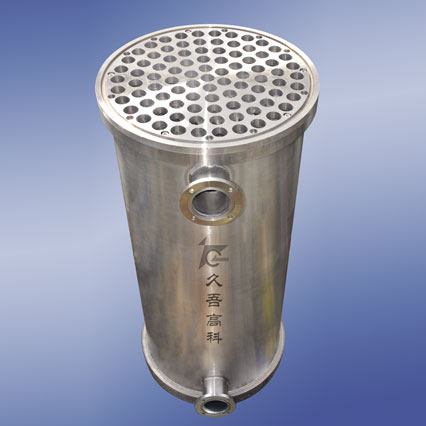

SS Membrane Module

Quantité : 200,000 pc   Prix : USD 150-600

The SS ceramic membrane module is designed by different applications. Stainless steel could be used as the material of module/housing, that is, ss membrane housing.

JIUWU company could produce the extra large stainless steel membrane housing as customer demand, such as loading over 91 pcs membranes. It also can be 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs membranes.

SS Membrane Module

Contact Us Contact Us

OVER VIEW OF SS CERAMIC MEMBRANE HOUSING

Ceramic membrane element has a variety of narrow distribution, high porosity, high capacity per unit membrane surface area.

Ceramic membrane element needs to be used and operated in normal operating procedures. The following conditions and chemicals of operation are absolutely not allowed, because it may destroy or damage the element:

Sharp variations in pressure;

Vigorous variations in temperature, △≤5℃/min;

Meet with strong acid and alkali with high concentration and temperature in a long time such as hydrofluoric acid, sulphuric acid ,hydrochloric acid in combination with stainless steel housings, formic or acetic acid at high concentration and high temperature, silicates, acrylics, varnish, silicon soil, resins, wax;

Filtering high viscosity liquid or liquid containing large rigid solid granules;

Using pumps without a soft starter or frequency converter;

Strike or knock on purpose;

CHARACTERISTICS OF STAINLESS STEEL MEMBRANE HOUSING

Number of loading membrane elements: 1, 3, 7, 12, 19, 37, 61, 76, 91, 138, 241 pcs

Matching membrane element length Diameter: 500, 1000, 1200mm / diameter: 25, 30, 40 mm

Main body material: SUS304 (L), SUS316 (L)

Sealing material: EPDM, Fluoro Rubber, Silicon, PTFE

Interface: Flange, Clamp, Whorl coupling

Pressure level: 0-1.0Mpa, 0-1.6Mpa, 0-2.5Mpa, 0-4.0Mpa

Standard: ISO, DIN / chemical grade, sanitary grade

APPLICATION OF SS CERAMIC MEMBRANE HOUSING

1. Food & Beverage

Sweetener

Wine (beer membrane filtration)

Fruit and vegetable juice

Dairy

Flavoring and seasoning

Natural herb extract

Enzyme

2. Bio-Pharm

Fermentation broth-antibiotic (including purification of antibiotics)

Fermentation broth-amino acid

3. Chemical and Petro-Chemical

Natural rubber (skim latex)

polysolicon cutting fluid recovery

Brine filtration

4. Water & Wastewater Treatment ( ceramic membranes for wastewater treatment )

Oilfield injection water

Paper industry wastewater treatment

Textile and printing industry wastewater

Oily wastewater treatment

Titanium dioxide water treatment

Pharmaceutical/chemical industry wastewater

Desalination/seawater treatment

Landfill leachate

Degreasing liquid treatment

Palm oil wastewater

PDF DOWNLOAD

92020 CMF19040 20nm 1200mm 92020 CMF19040 20nm 1200mm

92021 CMF19040 50nm 1200mm 92021 CMF19040 50nm 1200mm

DataSheet-CMF19040-200nm DataSheet-CMF19040-200nm

DataSheet-CMF19040-200nm Single Module Datasheet

ceramic membrane manufacturer in China. Owning n more than 50 patents regarding ceramic membranes, Jiuwu Hi-Tech membrane supplies a series of high-quality ceramic membrane of microfiltration, ultrafiltration and nanofiltration, ceramic membrane module, membrane testing machine and professional ceramic membrane filtration system for industrial use, including solid-liquid separation in food and beverage, biotechnology, water treatment, chemcial industry, etc.

As a core technology, JIUWU has become the largest Ceramic membrane factory and a world leader in cross-flow filtration. JIUWU ceramic membrane element is tubular composite membranes on an open porous carrier tube made of high purity α-alumina oxide (AL2O3) and titanium oxide (TiO2). The ceramic membrane element is optimized for maximum water permeability and high mechanical stability.

Localisation : No. 9 Yuansi Road, Pukou, Nanjing, Jiangsu, China , 211808 nanjing,
Personne à contacter : Ding Claire, 025 58109595
