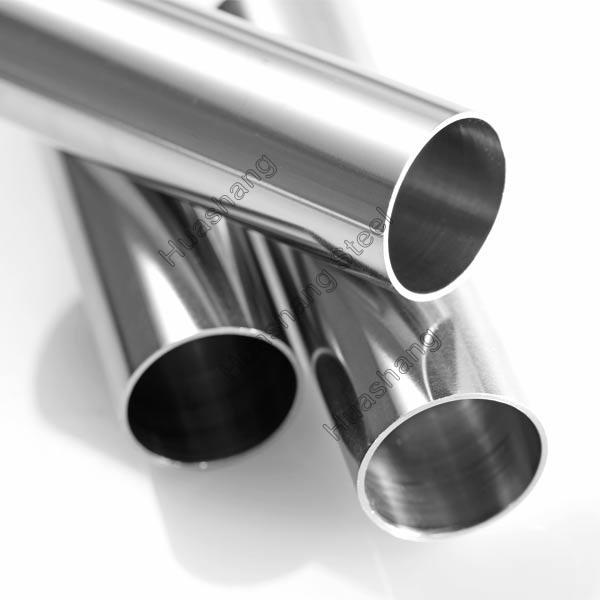

Stainless Steel Instrument Tubing
Quantité : 5000 ton/p Prix : 0.8usd
Product description
Stainless Steel Instrument Tubing Description
Huashang instrument tubes are in a comprehensive range of corrosion-resistant stainless steels and nickel alloys protecting outdoor diameters from (OD) 2.0 to 38 mm. All sizes are provided with clean surfaces and shut dimensional tolerances reducing the risk of leakages when connecting tubes with couplings.
HUASHANG instrument tube length is straight, but our tubes can additionally be delivered as coiled tubing, contributing to reduced installation costs. HUASHANG instrumentation tubes are characterized by using high cleanliness, and tubes with OD large than 5 mm are delivered with plugged ends for transport protection towards inside contamination. Instrumentation tubes are applied to many industries, such as Instruments and meters, Petroleum, Medicine, Chemical Industry, Water Purification, Gas and Pressure Vessel. In order to ensure the quality of the instrumentation tube, we will be according to the standard to do an inspection, such as chemical analysis, tensile, hardness, flattening, flaring, corrosion, and hydrostatic.
Stainless Steel Instrument Tubing Materials
Autenitic Stainless steel:
TP304, TP304L, TP304H, TP316/TP316L, TP316H, TP316Ti, TP321, TP321H, TP317, TP317L, TP347, TP347H, TP310S, TP310H, TP904L, 254Mo.
Duplex&Super Duplex steel:
S31803, S32205, S32750, S32760.
Nickel alloy steel:
N06600, N06601, N06625, N07718, N08800, N08825, N010276, N04400, N05500, N08020, N08028
Stainless Steel Instrument Tubing Standard:
EN10216-5TC1, ASTM A789, BORN MR0175 / ISO 15156, ISO6207, ASTM B444 GRADE 1 & GRADE2, ASTM SB444 GRADE1 & GRADE2, ASTM B668, ASTM A213, ASTM A269, EN10216-5
Stainless Steel Instrument Tubing Size Range:
OD Range: 2.0mm--38mm
Wall Range: 0.08mm--5.00mm
Length: Cut to length by client request
typical size & tolerance
Production name |
OD / mm |
OD tolerence/mm |
W. T tolerence% |
OD=Outsize Diameter |
Instrumentation tubes |
<4.76</span> |
+0.08-- 0 |
+-10 |
|
<2.38</span> |
+0.05--0 |
+-10 |
W.T=Wall Thickness |
|
6.0-30.0 |
+-0.08 |
+-10 |
||
32-38 |
+-0.15 |
+-10 |
Chemical Composition of Nickel Alloy, Duplex steel & Austenitic Steel
