Stainless steel plain weaving dutch wire mesh
Quantité : 10Square M Prix : USD 4.0/Square Meter
Product Description:
Key Specifications/Special Features:
Product Name: Hot Sale Stinless Steel Woven Wire Mesh For Filter
Material: stainless steel wire 304/316
Color: stainless steel colour
Standard;JB/T5979-92,Q/9D193-1998,ISO4783/1--1990
Grade : As request
Used: Used for gas, liquid filtration and other media separation.
Hot Sale Stinless Steel Woven Wire Mesh For Filter
Our company produces military and civilian metal wire mesh products have more than 60 years of history, with the domestic advanced screen equipment, process equipment and high-precision detection means, wire mesh specifications complete, and a strict and reliable quality assurance system to ensure that the screen product quality The wire mesh is mainly used for solid particle sieving, fluid filtration and decoration, dustproof, skeleton support and so on.
1)Material: 304, 304L, 316, 316L,, 310S and other metal processing,
2)Features: smooth surface, no rust, corrosion resistance, non-toxic, health, environmental protection
3)Performance: heat resistance, acid resistance, corrosion resistance, wear resistance
4)Use: stainless steel net is widely used in mining, chemical, food, petroleum, medicine and other lines, mainly used for gas, liquid filtration and other media separation with stainless steel mesh parameters
The specifications of wire mesh:
Mesh NO. | (mm)Aperture size | (mm)Wire Dia | Screening area (%) | Mesh/inch | (Kg/m²) |
5# | 4 | 1 | 64 | 5.08 | 2.52 |
6# | 3.35 | 0.8 | 65 | 6.12 | 2.15 |
3.35 | 0.63 | 71 | 6.38 | 1.39 | |
3.15 | 0.8 | 64 | 6.43 | 2.26 | |
3.15 | 0.58 | 72 | 6.85 | 1.26 | |
7# | 2.8 | 0.71 | 51 | 7.24 | 2 |
2.8 | 0.56 | 69 | 7.56 | 1.3 | |
2.5 | 0.62 | 64 | 8.12 | 1.71 | |
2.5 | 0.5 | 69 | 8.47 | 1.16 | |
8# | 2.36 | 0.56 | 65 | 8.7 | 1.5 |
2.36 | 0.45 | 71 | 9.04 | 1 | |
10# | 2 | 0.5 | 64 | 10.2 | 1.69 |
2 | 0.45 | 59 | 10.6 | 1.18 | |
1.9 | 0.6 | 58 | 10.2 | 2.01 | |
1.9 | 0.5 | 63 | 10.6 | 1.46 | |
1.8 | 0.45 | 64 | 11.3 | 1.26 | |
12# | 1.7 | 0.45 | 63 | 11.8 | 1.31 |
1.7 | 0.4 | 66 | 12.1 | 1.06 | |
1.6 | 0.45 | 61 | 12.4 | 1.38 | |
1.6 | 0.4 | 64 | 12.7 | 1.12 | |
1.5 | 0.4 | 62 | 13.4 | 1.17 | |
14# | 1.4 | 0.4 | 60 | 14.1 | 1.24 |
1.4 | 0.355 | 64 | 14.5 | 1 | |
1.32 | 0.4 | 59 | 14.8 | 1.3 | |
1.25 | 0.4 | 57 | 15.4 | 1.35 | |
1.25 | 0.315 | 54 | 16.2 | 0.88 | |
16# | 1.18 | 0.4 | 56 | 16.1 | 1.41 |
1.18 | 0.315 | 52 | 17 | 0.92 | |
1.12 | 0.355 | 58 | 17.2 | 1.19 | |
1.12 | 0.28 | 54 | 16.1 | 0.69 | |
1.06 | 0.355 | 56 | 16 | 1.11 | |
1.06 | 0.28 | 53 | 19 | 0.81 | |
18# | 1 | 0.355 | 54 | 18.8 | 1.3 |
1 | 0.25 | 54 | 20.3 | 0.69 | |
0.95 | 0.355 | 53 | 19.5 | 1.35 | |
0.9 | 0.355 | 51 | 20.2 | 1.4 | |
20# | 0.85 | 0.315 | 53 | 21.8 | 1.19 |
0.85 | 0.224 | 53 | 23.7 | 0.65 | |
0.8 | 0.315 | 51 | 22.8 | 1.24 | |
0.8 | 0.2 | 64 | 25.4 | 0.56 | |
0.75 | 0.315 | 50 | 23.8 | 1.29 | |
0.75 | 0.28 | 53 | 24.7 | 1.06 | |
25# | 0.71 | 0.28 | 51 | 25.7 | 1.11 |
0.71 | 0.2 | 61 | 27.9 | 0.61 | |
0.67 | 0.28 | 50 | 26.7 | 1.15 | |
0.63 | 0.25 | 51 | 28.9 | 0.99 | |
0.63 | 0.2 | 58 | 30.8 | 0.68 | |
30# | 0.6 | 0.25 | 50 | 29.9 | 1.02 |
0.6 | 0.18 | 59 | 32.6 | 0.58 | |
0.56 | 0.224 | 51 | 32.4 | 0.89 | |
0.56 | 0.18 | 57 | 34.3 | 0.61 | |
0.53 | 0.224 | 49 | 33.7 | 0.93 | |
0.53 | 0.18 | 56 | 35.8 | 0.64 | |
35# | 0.5 | 0.224 | 48 | 35.1 | 0.98 |
0.5 | 0.16 | 57 | 38.5 | 0.54 | |
0.475 | 0.16 | 53 | 38.9 | 0.55 | |
0.45 | 0.18 | 51 | 40.3 | 0.72 | |
0.45 | 0.14 | 58 | 43.1 | 0.46 | |
40# | 0.425 | 0.16 | 53 | 43.4 | 0.61 |
0.425 | 0.14 | 57 | 45 | 0.49 | |
0.4 | 0.16 | 51 | 45.4 | 0.64 | |
0.4 | 0.14 | 56 | 47 | 0.51 | |
0.375 | 0.16 | 49 | 47.5 | 0.69 | |
0.375 | 0.125 | 56 | 50.8 | 0.44 | |
45# | 0.355 | 0.14 | 51 | 51.3 | 0.55 |
0.355 | 0.125 | 55 | 52.9 | 0.45 | |
0.315 | 0.14 | 49 | 55.8 | 0.6 | |
0.315 | 0.125 | 51 | 57.7 | 0.49 | |
50# | 0.3 | 0.14 | 46 | 57.7 | 0.62 |
0.3 | 0.112 | 53 | 61.6 | 0.42 | |
60# | 0.25 | 0.125 | 44 | 67.7 | 0.58 |
0.25 | 0.1 | 51 | 72.6 | 0.4 | |
0.236 | 0.125 | 43 | 70.4 | 0.61 | |
0.224 | 0.125 | 41 | 72.8 | 0.63 | |
0.224 | 0.09 | 51 | 80.9 | 0.36 | |
70# | 0.212 | 0.125 | 40 | 75.4 | 0.65 |
0.212 | 0.09 | 49 | 84.1 | 0.37 | |
0.2 | 0.125 | 39 | 78.2 | 0.68 | |
0.2 | 0.08 | 51 | 90.7 | 0.32 | |
0.19 | 0.125 | 36 | 80.6 | 0.69 | |
80# | 0.18 | 0.125 | 35 | 83.3 | 0.74 |
0.18 | 0.071 | 51 | 101 | 0.28 | |
0.17 | 0.112 | 36 | 90.1 | 0.62 | |
0.17 | 0.063 | 53 | 109 | 0.24 | |
0.16 | 0.112 | 35 | 93.4 | 0.64 | |
0.16 | 0.063 | 51 | 114 | 0.25 | |
100# | 0.15 | 0.1 | 38 | 102 | 0.56 |
0.15 | 0.063 | 50 | 119 | 0.26 | |
0.14 | 0.09 | 37 | 110 | 0.49 | |
0.14 | 0.063 | 48 | 125 | 0.27 | |
0.132 | 0.09 | 35 | 114 | 0.51 | |
120# | 0.125 | 0.09 | 34 | 118 | 0.53 |
0.118 | 0.05 | 36 | 128 | 0.18 | |
0.112 | 0.08 | 34 | 132 | 0.46 | |
0.112 | 0.063 | 41 | 145 | 0.32 | |
140# | 0.106 | 0.071 | 36 | 144 | 0.4 |
0.106 | 0.05 | 40 | 163 | 0.22 | |
0.1 | 0.071 | 34 | 149 | 0.41 | |
0.1 | 0.05 | 44 | 169 | 0.23 | |
0.095 | 0.063 | 36 | 161 | 0.35 | |
170# | 0.09 | 0.063 | 35 | 166 | 0.36 |
0.09 | 0.05 | 40 | 181 | 0.25 | |
0.085 | 0.056 | 36 | 180 | 0.31 | |
0.08 | 0.056 | 36 | 187 | 0.32 | |
0.08 | 0.04 | 44 | 212 | 0.19 | |
200# | 0.075 | 0.05 | 33 | 194 | 0.33 |
0.075 | 0.045 | 39 | 212 | 0.24 | |
0.071 | 0.056 | 31 | 200 | 0.34 | |
0.067 | 0.05 | 33 | 217 | 0.3 | |
230# | 0.063 | 0.045 | 34 | 235 | 0.26 |
0.063 | 0.04 | 37 | 247 | 0.22 | |
0.06 | 0.045 | 33 | 242 | 0.27 | |
0.056 | 0.04 | 34 | 265 | 0.23 | |
270# | 0.053 | 0.04 | 33 | 273 | 0.24 |
0.053 | 0.032 | 39 | 300 | 0.17 | |
0.05 | 0.036 | 34 | 295 | 0.21 | |
0.05 | 0.03 | 39 | 317 | 0.16 | |
0.048 | 0.032 | 36 | 318 | 0.18 | |
325# | 0.045 | 0.036 | 31 | 314 | 0.22 |
0.045 | 0.028 | 38 | 348 | 0.11 | |
0.04 | 0.03 | 32 | 363 | 0.18 | |
400# | 0.038 | 0.025 | 36 | 403 | 0.14 |
500# | 0.025 | 0.025 | 31 | 508 | 0.14 |
0.028 | 0.022 | ||||
600# | 0.02 | 0.02 | 635 | 0.13 |
Note: Screen material: H68, H80, QSn6.5-0.4, SUS304, SUS316, SUS316L, SUS304HP
According to user requirements to provide screen to add series size.
Detailed Images:

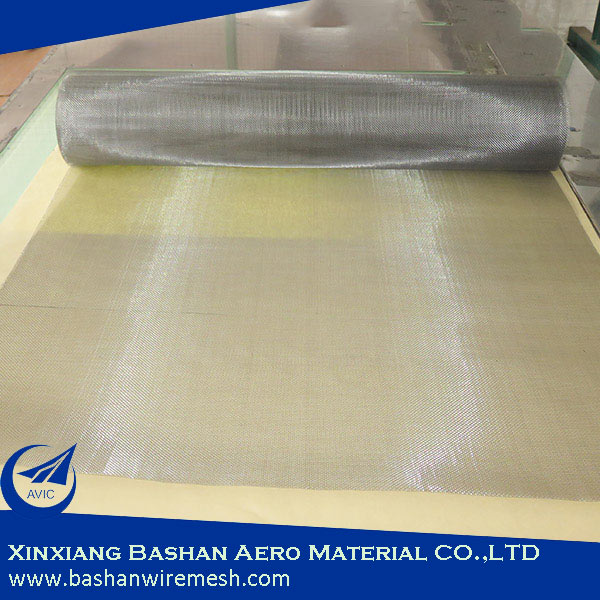

SUS304 SUS316 Series Stainless Steel Wire Mesh:
Other Products:
Brass wire mesh Nickel wire mesh
Our Company:
Xinxiang Bashan Aero Material Co., Ltd.
In more than 62 years experience of metal wire cold drawing, metal wire mesh weaving and deep processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national standard; GJB national military defense standard; HB, aviation standard.)
Our Certifications:
1)Passed ISO9001: 2008 quality certificate
2)Passed ISO/TS16949: 2009 certificate
3)Passed GJB9001A-2001 military quality certificate.
4)Drafted GJB119.1A-119.4A-2001, GJB107-5110-2002, GB/T5330-2003,HB1862-93
Packing & Delivery:
SUS304 SUS316 Series Stainless Steel Wire Mesh
Our most professional packaging Transport of large trucks to the seaport
