Stainless Steel Sintered Wire Mesh

Anping Tenglu Metal Wire Mesh Co.,LTD

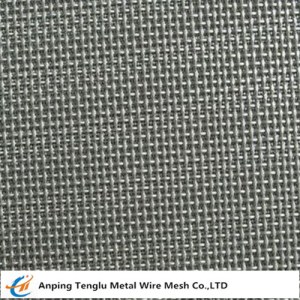

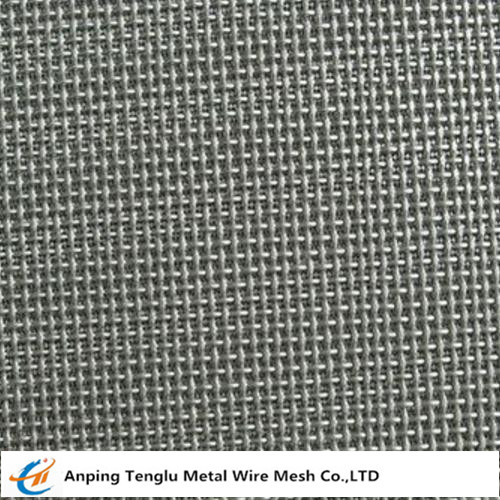

Stainless Steel Sintered Wire Mesh

•Product Description:
Stainless Steel Sintered Wire Mesh is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.

This type of sintered wire mesh laminate is made by sintering multiple layers of plain weave square woven wire mesh together. Because of the large open area percentages of the square woven wire mesh layers, this type of sintered wire mesh laminate has good permeability characteristics and low resistance to flow. It can be designed with any number and combination of square plain weave wire mesh layers to achieve particular flow and filtration characteristics. This type of sintered wire mesh laminate is useful for polymer production, as well as a variety of fluid and air filtration applications.

Another possibility with this type of stainless steel sintered wire mesh laminate is the ability to sinter a large number of layers of square woven wire mesh together to form parts that are very thick and useful as flame and detonation arrestors. These laminates can be inches thick and still be made with high flow characteristics.

This stainless steel sintered wire mesh laminate is produced in 2'x4' or 4'x4' sheets, and can then be cut and fabricated into various discs, tubes, filter cartridges, and flat panels.

•Materials: Stainless steel 302, 304, 304L, 316, 316L,

•Feature:
High filtration accuracy based on the wire mesh
Low differential pressure
High pressure resistance and excellent toughness
High heat resistance based on the characteristic of stainless steel
Range of use temperature in oxidative atmosphere -269℃~600℃
Excellent corrosion resistance based on the characteristic of stainless steel
Excellent cleanability and long-term reuse due to the typical surface filtration

•Benefit:
Enhanced stability: The sintering process results in greater stability, which makes it an excellent choice for mesh with a higher percentage of open areas or that requires a secure pore size.

Localisation : Chengdong Development Zone, 053600 Anping,
Personne à contacter : liu Emily, 3125527942

Bonne affaire : acheter au vendeur
