Stainless Steel Twill Weave Wire Mesh Cloth

Anping Tenglu Metal Wire Mesh Co.,LTD

Stainless Steel Twill Weave Wire Mesh Cloth

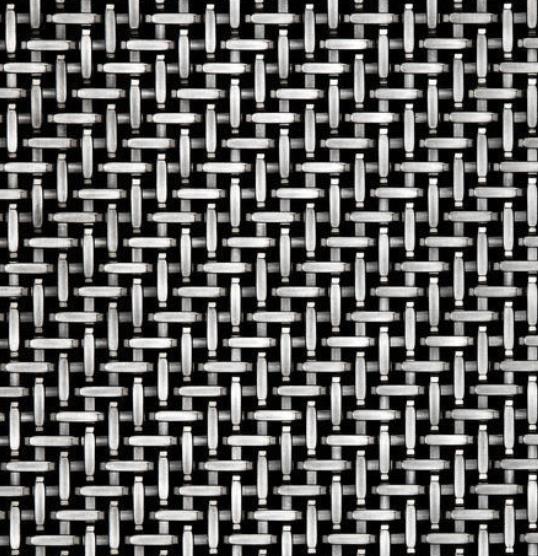

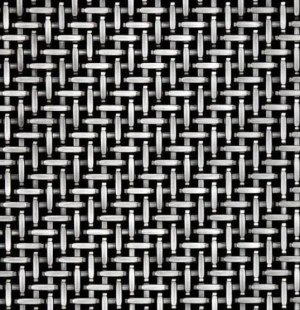

In the Twilled Woven Wire Mesh, the wires of the weft and the warp intercross two above and two below, inverting the intersections of the warp wire at an established distance, obtaining a rigid, stable and robust type of wire mesh fabric.

Crossed twilled wire mesh are basic components in the production of filters, colanders for aliments, chemicals products, shielding, mosquito nets, etc.

Wire Materials:

Stainless Steel Wire: AISI 304, 304L, 316, 316L, 310, 314, 410, 430.

Twilled woven wire mesh in carbon steel, galvanized steel, aluminum alloy, brass, phosphor bronze and other metals is also supplied.

SS 304 Twill Weave Wire Mesh

Weave
TYPE

MESH
COUNT

WIRE DIA.
IN INCHES

WIDTH OF OPENING

% OF
OPEN AREA

WEIGH PER 100 SQ'
BASED ON SS 304

INCHES

MICRON

TWILL

60 X 60

.0110

.0057

145

11.7

43.3

TWILL

60 X 60

.0100

.0067

170

16.2

38.3

TWILL

80 X 80

.0070

.0055

140

19.4

27.7

TWILL

270 X 270

.0016

.0021

53

32.2

4.8

TWILL

325 X 325

.0014

.0017

43

30.0

4.3

TWILL

400 X 400

.0011

.0014

36

31.4

3.4

TWILL

500 X 500

.0010

.0010

25

25.0

*

TWILL

635 X 635

.0008

.0008

20

25.0

*

SS 316 Twill Weave Wire Mesh

Mesh

Wire Dia.(MM)

Opening (MM)

Material (AISI)

250

0.040

0.063

316

300

0.040

0.044

316

325

0.035

0.043

316L

350

0.030

0.042

316L

400

0.030

0.033

316L

450

0.028

0.028

316L

500

0.025

0.026

316L
