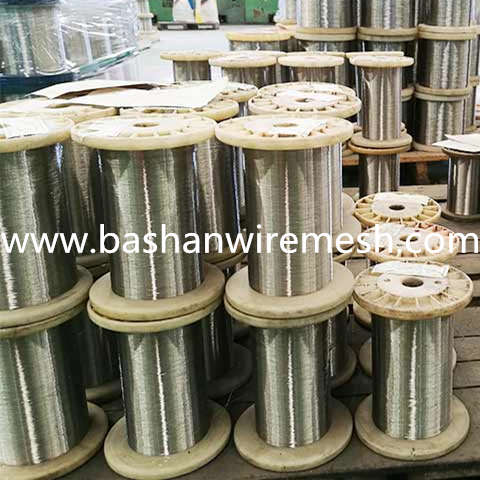

Stainless steel wire for Military Defense & Civil Life Use Φ5.5mm~0.02mm
Quantité : 50kg Prix : USD2.0/kg

Coarse wire (5.5mm-1.0mm)
Material: 304, 304L, 308, 316, 316L, 321, 410, 430, etc.
Applications: Standard parts, wire rope, spring, welded wire, wire mesh weaving, etc.

Medium wire (1.0mm-0.09mm)
Material: 304, 304L, 316, 316L, 321, etc.
Applications: Wire mesh weaving, wire redrawing, etc.

Fine wire (0.09mm-0.02mm)
Material: 304, 316, 316L, etc.
Applications: Wire mesh weaving, textile fabric of radiation resistance, etc.
| Wire type | Diameter | Elongation |
Tensile Strength |
Spool type | Weight/Spool | Material |
| Coarse Wire |
5.5-1.0mm | ≥ 25% | ≥ 650Mpa | Barrel, Coil | 30kg-50kg/barrel |
304,304L,308, 316,316L,321, 410,430 |
| 50kg-150kg/coil | ||||||
| Medium Wire |
1.0-0.09mm | ≥ 25% | ≥ 650Mpa | OB80, OB115, K100 |
500g-2kg/spool |
304,304L,316, 316L,321 |
| DIN160, DIN200 | 5kg-10kg/spool | |||||
| Fine Wire | 0.09-0.015mm | ≥ 25% | ≥ 700Mpa | OR80,OR115, HK100 |
500g-2kg/spool | 304,316,316L |
Stainless Steel Grade Comparison Table (Main types)
| No |
AISI/ ASTM |
JIS | GB | BS | TOCT | DIN | NF | UNS |
| 1 | 202 | SUS202 | 1Cr18Mn8Ni5N | 284S16 | 12X17T9AH4 | X8CrMnNi189 | Z15CNM19.08 | S20200 |
| 2 | 302 | SUS302 | 1Cr18Ni9 | 302S25 | 12X18H9 | X12CrNi18.8 | Z10CN18.09 | S30200 |
| 3 | 304 | SUS304 | 0Cr18Ni9 | 304S15 | 08X18H10 | X5CrNi18.9 | Z6CN18.09 | S30400 |
| 4 | 304L | SUS304L | 00Cr18Ni10 | 304S12 | 03X18H11 | X2CrNi18.9 | Z2CN18.09 | S30403 |
| 5 | 316 | SUS316 | 0Cr17Ni12Mo2 | 316S16 | 08X17H14M2T | X5CrNiMo18.10 | Z6CND17.12 | S31600 |
| 6 | 316L | SUS316L | 00Cr17Ni14Mo2 | 316S12 | 03X17H14M2 | X2CrNiMo18.10 | Z2CND17.12 | S31603 |
| 7 | 317 | SUS317 | 0Cr19Ni13Mo3 | 317S16 | 08X17H15M3T | X5CrNiMo17.13 | - | S31700 |
| 8 | 317L | SUS317L | 00Cr19Ni13Mo3 | 317S12 | 03X16H15M3 | X2CrNiMo18.16 | Z2CND19.15 | S31703 |
| 9 | 430 | SUS430 | 1Cr17 | 430S15 | 12X7 | X8Cr17 | Z8C17 | S43000 |
| 10 | 410 | SUS410 | 1Cr13 | 410S21 | 12X13 | X10Cr13 | Z12C13 | S41000 |
our company

Xinxiang Bashan Aero Material Co., Ltd., affiliated to China Aviation Industry Corporation (AVIC), is the only professional military manufacturer of stainless steel wire, EDM brass wire.
Stainless Steel Wire Advantages:
*The only professional military manufacturer of stainless steel wire and brass wire in China.
*More than 62 years experience of stainless steel wire drawing and wire mesh weaving.
*Certified in accordance with GB/T ISO 9001: 2008, ISO/TS16949: 2009 quality system.
*Use reliable raw material from Ugitech, Hikari Works and Tisco etc.
*800 tons of medium and fine stainless steel wire; 3600 tons of coarse wire above 1mm.
*Have independent import and export rights since 1996.
Contact:
Contact: Maggie Guan
AVIC Xinxiang Bashan Aero Material Co., Ltd.
No.5 Daoqing Rd, Xinxiang, Henan, 453000, China
----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- ----- --
Mail: bashan@vip.126.com
Tel : +86-373-3091998 │ Fax: +86-373-3091996
Phone(whatapp): +86-15737341712 │ Skype: bashan05@hotmial.com
Personne à contacter : Maggie Guan, +86 373 3091998
