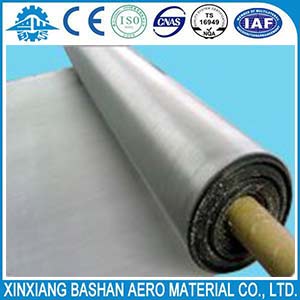

Stainless steel wire mesh 302、304、316、321、304L、316L etc. blue,black,red etc.
Quantité : 1000000㎡/y Prix : USD4.0-40/㎡
stainless steel wire mesh
| production standard | GB/T5330,Q/9Dn1-2015,HB1862-1993,ISO9044-1999 |
| the way of weaving | square hole or minigroove |
| texture | 304,304L,316,316L,310,310s,brass,nickel etc. |
| aperture size | 6.00-0.020mm |
| application |
chemistry: acid base salution filtration,chemical experiment,corrosive gas filtration chemical particle filtration etc petroleum: oil refining,oil mud filtration,impurity separation etc. medicine: chinese traditional soup is filtered etc. electron: cricuit board structure,electron componet etc. printing: ink filter etc machinery: vibrating screen etc. |
Size
| mesh |
wire diameter |
aperture |
opening area |
net weight |
||
| inch | millimeter | inch | millimeter | |||
| 1*1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 | 41.1 |
| 2*2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 |
| 3*3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 |
| 4*4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 4*4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 |
| 5*5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 |
| 6*6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 |
| 8*8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 |
| 10*10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 |
| 10*10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12*12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 12*12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 | 31.6 |
Advantage
01.long history
The company engaged in wire drawing, cold metal mesh silk processing and products with a history of 60 years
02.modern techniques
The successful application of supporting products in the detection of world-renowned "Shenzhou five, No. six, No. seven, No. eight, No. nine, No. ten" manned spacecraft, Tiangong-1 and Chang'e I, No. two "lunar engineering equipment, by the national manned space technology engineering command and Aerospace Science and technology group awards
03.Specialized management
Is a professional production enterprise China military defense industry metal wire, metal mesh, steel screw, filter, special filter components
04.Perfect service
Efforts to achieve common development of customers, enterprises and employees, for the country's national defense construction and economic development to make a positive contribution.
05.Complete specifications
Is the domestic large scale, technology supporting ability, complete specifications of the metal wire mesh products. Is the main GB/T5330, GB/T6003.1, GJB5107, drafting HB1862 19 screen technology standard unit
06.Annual output of 1 million Party
With an annual output of 1 million square net material, with imports of 26 looms, high precision and strong net material production capacity.
Our company
Xinxiang Bashan Aero Material Co., Ltd. (Bashan), affiliated to China Aviation Industry Corporation, is a specialized manufacturer that produces steel thread inserts for military and civil use more than 50 years. We attained ISO9001 certificate in 1998. Good quality, best price and large capability of production.
In more than 60 years experience of metal wire cold drawing, metal wire mesh weaving and deep
processing products, Bashan company acquired 24 metal wire & mesh patents and took chief part
of 19 standards, such as GB/T4240, GB/T5330, GB/T6003, GJB107, HB1862, etc. (GB/T, national
standard; GJB national military defense standard; HB, aviation standard.)
