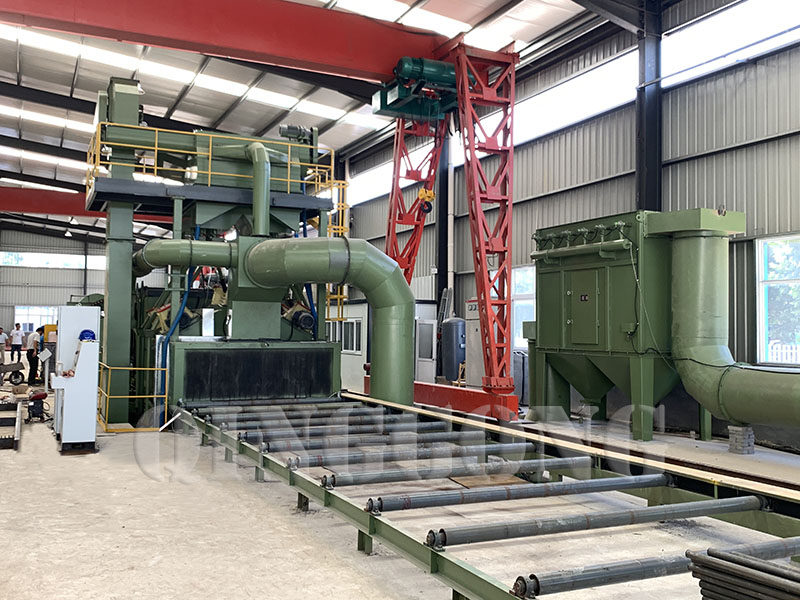

STEEL PLATE SHOT BLASTING MACHINE
Steel plate shot blasting machine is one kind of roller conveyor shot blasting machines. It can remove all rust, corrosion and mill scale from steel plate and provides ideal surface finish (SA2.5) for securing a continuous and effective bond between the steel surface and coat. Our company' s steel shot blaster is for sale.
Steel plate shot blasting machine parameter:
Type |
unit |
QGRB600 |
QGRB1000 |
QGRB1500 |
QGRB2000 |
QGRB2500 |
QGRB3000 |
|
Effective blasting width |
mm |
600 |
1000 |
1500 |
2000 |
2500 |
3000 |
|
Dimension of entrance(W×H) |
mm |
800×300 |
1200×300 |
1700×300 |
2200×300 |
2700×300 |
3200×300 |
|
Work speed to achieve cleaning of Sa2.5 ISO8501 |
m/min |
0.5~3 |
0.5~3 |
0.5~3 |
0.5~3 |
0.5~3 |
0.5~3 |
|
Number of wheels×power |
kW |
4×7.5/11 |
4×11/15 |
4×11/15 |
6×11/15 |
8×11/15 |
8×11/15 |
|
Wheel optional |
kW |
— |
— |
— |
4×15 |
6×15/18.5 |
6×15/18.5 |
|
Abrasive initial filling capacity |
kg |
2000 |
4000 |
4000 |
4500 |
6000 |
6000 |
|
Processed length of the workpiece |
mm |
1200~12000 |
1200~6000 |
1200~12000 |
3000~12000 |
2400~12000 |
3000~18000 |
|
Foundation pit required |
|
No |
No |
No |
Yes |
Yes |
Yes |
Steel Plate Shot Blasting Machine Features
QINGGONG's steel plate shot blasting machine features:
Conveying system:
The steel plate shot blaster machine has many components, including: rollers, chain, reducer, sprocket cover, and roller support.
A roller is first welding and then processing, to ensure the concentricity of the roller
The material of roller is 45# carbon steel, it can use 8-10 years.
Both sides of the roller are equipped with sprocket covers to protect the sprockets and spindle nose.
The roller support of this steel shot sandblasting has secondary reinforcement, it is enough to load the workpiece.
Blasting Chamber:
Steel plate shot blasting machine's chamber component: shot blasting chamber, front and rear sealing room, sand-guide channel and others.
The engineering team uses 3-D dynamic simulation design blast turbines layout to ensure that the steel shot ray can cover the surface of the workpiece 360 degrees.
This type of shot blasting machine for sale has shot blasting chamber with ZGMn13 steel guard plate, achieving long service life.
Six layers of protection curtain to prevent the shot balls spatter out during blast cleaning. The curtain layers of the metal shot blasting are natural rubber material with leaf spring which can automatically reset, ensure the sealing of the machine.
High chrome wear-resistant cast iron grate guard plate which protects the screw conveyor and prevents big clump to get into the hopper damaging the bottom screw conveyor.
Abrasive cleaning up system:
Abrasive cleaning up system of the steel shot blasting consists of brush, screw conveyor, abrasive blowing fan and lifting mechanism. This system of the plate blasting machine for sale can remove the steel shot left on the plate after blasting.
The material of brush is high strength polyamide nylon, it has enough elasticity to sweep the 95% abrasive accumulated on the steel plate into the screw conveyor.
High-pressure abrasive blowing fan blows off un-collected steel shot on the plate to brush. In this way, the whole system recycles all the abrasive from the steel plate.
The lifting mechanism can automatically adjust the height of the brush, screw and abrasive blowing fan according to the thickness of the steel plate, to meet the needs of the customer who wants high-quality steel shot sandblasting products.
Applications of Steel Plate Shot Blasting Machine
Steel plate shot blasting and painting line is a type of the roller conveyor shot blasting machine. The steel shot sandblasting is mainly used to blast steel plate, but it can be also to blast h beam, I beam, steel pipe, steel rebar and others. Mainly used in raw material factories, shipyards, construction factories. The steel shot blaster for sale provices a better surface for weldng and improves coating adhesion.
Why Choose QingGong Steel Plate Blasting Machine
Qinggong machinery is a professional blasting machine manufacturer with more than 48 years experience.
1. Technical support: Professional technical team with an average working age of 30 years in the steel shot sandblasting area.
2. Quality inspection: Three quality inspection mechanisms. Inspectors, engineering department, and sales department are also involved in quality inspection and supervision. Guaranteed product quality.
3. Favorable price: Get more orders at low steel shot blasting prices.
4. After-sales service: 15 professional after-sales service engineers, with passports from various countries, are ready to leave at any time.
Steel Plate Blasting FAQs
What utilities are needed to run the steel plate blasting?
Steel plate shot blasting machine, air compressor, crane and abrasive.
What type of abrasive media does this shot blasting machine steel foundry use?
For steel plate shot blasting machine, that can use steel shot, cut wire shot as abrasive. The quality of abrasive affects the shot blasting effect and the surface roughness of the workpiece, so for steel structural parts such as steel plates, we recommend mixing steel shot and cut wire shot.
Are there any special operator skills required for the steel sand blasting machine?
Don't need other any special operator skills. After the installation of the equipment, our engineers will teach the operator how to run the equipment and simple fault analysis and solution. At the same time, our equipment has automatic mode and manual mode, automatic mode operation is very simple.
