Steel Structure Warehouse

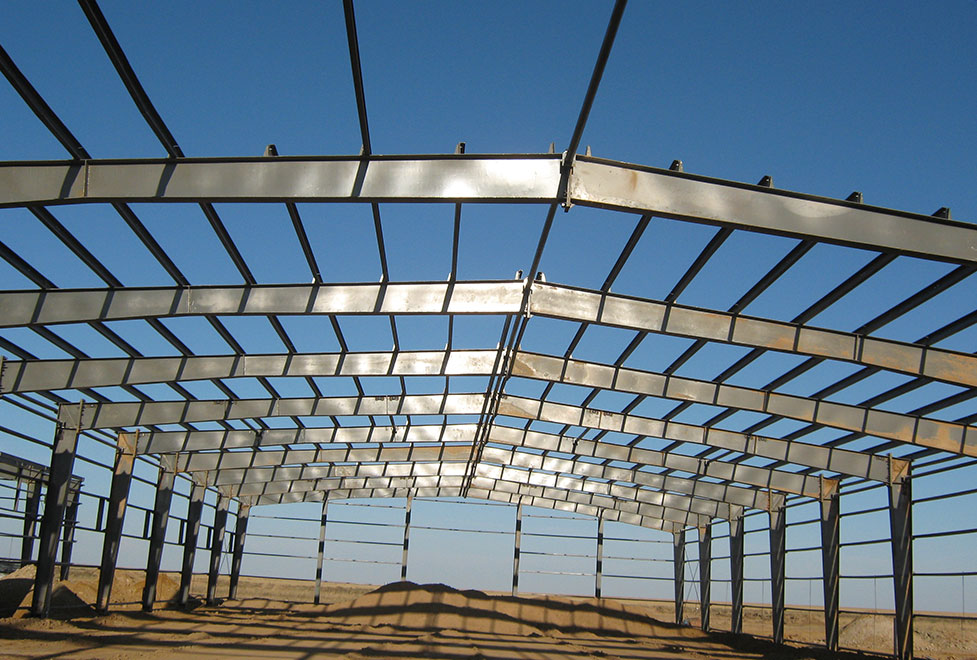

Steel structure warehouse building mainly refers to the main load-bearing components composed of steel. Including steel columns, steel beams, steel structure foundations, steel roof trusses, steel roofs, and steel structure walls can also be enclosed by brick walls. Steel structure workshops can also be divided into light and heavy steel structure warehouse.
Product Parameters of Steel Frame Building Construction Warehouse
H steel Structure Warehouse technical specification
|
No. |
Classification |
Name |
Specification |
|
1 |
Parts |
Length |
Any length available |
|
2 |
Width |
Single span no more than 30000mm |
|
|
3 |
Height |
Transported in container, ridge is no more than12000mm |
|
|
4 |
Upright post |
H steel structure composed of jointing steel board, Q345or Q235. |
|
|
5 |
Roof girder |
H steel structure composed of jointing steel board, Q345or Q235. |
|
|
6 |
Roofing purline |
C160steel, T=2.5MM, Q235/Q195 |
|
|
7 |
Wall girder |
C160steel, T=2.5MM, Q235/Q195 |
|
|
8 |
Wall panel |
Colored sandwich panel, colored steel contour plate |
|
|
9 |
Roofing panel |
Colored sandwich panel, colored steel contour plate |
|
|
10 |
Door |
Colored steel sandwich panel double acting door/single door/double door |
|
|
11 |
Windows |
Plastic steel windows/Colored steel windows (push and pull, casement, top-hinged window) |
|
|
12 |
Optional accessories |
Ceiling |
Mineral cotton acoustic board sprung roof, PVC sprung roof, aluminum gusset sprung roof. |
|
13 |
Water |
Provided plan, design and technical service. |
|
|
14 |
Electricity |
Provided plan, design and technical service. |
|
|
15 |
Structure |
Live load on roof |
In 120kg/Sqm (Color steel panel surrounded) |
|
16 |
Wind resistance grade |
12 |
|
|
17 |
Earthquake-resistance |
8degree |
|
|
18 |
Structure usage |
25years |
As a steel structure warehouse supplier, we can offer kinds of warehouse steel structure for sale, and the peb warehouse cost is low, anything you need, please contact us.
If you want to know more kinds of steel house framing systems, please visit our website.
