Step Shaft Forging Component

As one of responsible die steel suppliers, Hongsheng Group has been focusing on the development and production of special steel castings, forged bars and mechanical parts for more than 25 years. The company adheres to the principle of "pursuing excellence and building a world brand", and has passed ISO9001, ISO14001, OHSAS18001, got PED, API, CNAS certification, and approved by 8 membership of IACS.

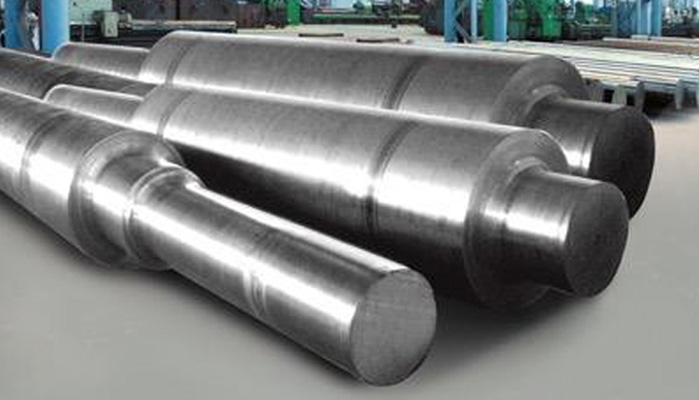

Step shaft is a shaft with multiple cylinders of different diameters connected together like steps. In fact, the outer ring and plane turning constitute the turning of the stepped shaft, so it is very important to consider the dimensional accuracy and step length requirements of the outer ring when turning.

Main parameters of Step Shaft

A：≤Φ1500mm B：≤Φ900mm C：≤Φ900mm

Common technical standards of Step Shaft

A: GB/T3077 EN10083 EN10084 EN10085 JB/T6395

B: JB/T1265~1271

C: JB/T3733 JB/T4120 JB/T6393

Typical steel grades of Step Shaft

A: 18CrNiMo7-6, 17CrNiMo6, 20CrNi2Mo, 20CrMnTi, 34CrNiMo6, 30CrNiMo8, 20CrNiMo, 40CrNiMo, 35CrMo, 42CrMo

B: 35CrMo, 35CrMoV, 34CrMo1A, 20SiMn, 16Mn, 34CrNi1Mo, 34CrNi2Mo, 34CrNi3Mo

C: 9Cr2Mo, 70Cr3Mo, MC3, MC5, etc.

Applications of Step Shaft

Gear shaft, transmission shat, rolls, motor rotation shafts for high speed trains and rail transit, petroleum machinery, etc.
