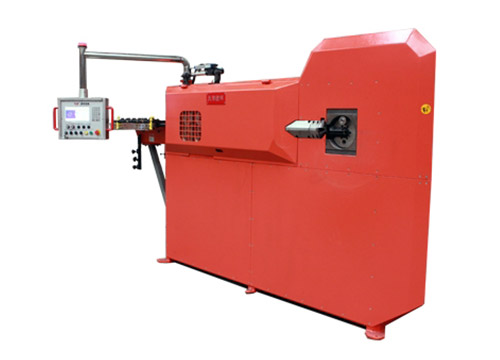

Stirrup Bender WG12D-4
Prix : 1000-6000USD
Stirrup Bender WG12D-4(stirrup rebar) has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted.
Stirrup Bender WG12D-4 VIDEO
Features of Stirrup Bender WG12D-4
Pure electric CNC stirrup bending machine, traction compression volume is digital controlled according to the diameter, bending movements are electric controlled detected, ensures simpler and more stable operation;
Duplex bending axis set, matching a variety of molds, workable with stirrups size range 100mm-1380mm ;
High-speed non-delay bending action, maximum bending speed 1200°/S;
Newly designed multi-function bending mechanism workable with large circular arc stirrups, the max curved arc up to R35
4Bidirectional 180° bending disc mechanism, avoid the stirrup of the collision, making the pass rate of 100%;
Traction wheel has a non-slip groove to prevent reinforcement in the process of slipping, transmission efficiency;
More Detail Stirrup Bender WG12D-4
Stirrup Bender WG12D-4(stirrup rebar) has the particular patented straightening system, constituted by sets of horizontal and vertical rollers that can be automatically adjusted, is integrated with 4 pulling rollers that eliminate the torsion, which is driven by servomotor, thus ensuring a perfect straightening accuracy.
The bending and cutting unit of Stirrup Bender WG12D-4(stirrup rebar), driven by servomotor, is equipped with turning and retractile bending pins. After receiving a signal from the computer, the cutting unit starts and cut in the twinkling guaranteed the tolerance of the stirrup.
For this Stirrup Bender WG12D-4(stirrup rebar), many electric and pneumatic parts are imported from Japan and German, such as PLC, servomotor and reducer.
A Stirrup Bender WG12D-4(stirrup rebar) available to the most 30 bends; 500 different stirrups parameter can be stored in the computer memory.
The Stirrup Bending machine WG12D-4(stirrup rebar) needs no pause and stop while processing stirrups of any shapes and adjusting bending angle.
With self-diagnosis, there are two standards exit, through which the electric encoder can be joined.
Technical Data of Stirrup Bender WG12D-4
Production capacity |
Single wire |
Φ5 – 12 [mm] |
Double wire |
Φ5 – 10 [mm] |
|
Max. bending angle |
±180° [double direction] |
|
Max. bending speed |
900 [°/sec] |
|
Max. pulling speed |
100 [m/min] |
|
Mandrel diameter |
Φ25 – Φ32 [mm] |
|
Max. length of the stirrup side (diagonal) |
1380 [mm] |
|
Min. length of the stirrup side |
120 [mm] |
|
Length tolerance |
± 1 [mm] |
|
Bending tolerance |
± 1° |
|
Average electric power consumption |
5.5 [KW] |
|
Labeled electric power |
27 [KW] |
|
Voltage |
380 [V] – 50 [Hz] |
|
Overall machine weight |
2,600 [Kg] |
|
Overall dimension |
8030 × 2005 × 2015 [mm] |
TJK is one of professional wire mesh welding machine manufacturers. We provide bending welded wire mesh, welded wire mesh bender, mesh bender, wire mesh bender for sale, reo bending machines and so on. Want to know about automatic stirrup bending machine price and stirrup bending machine price? Please contact us.
