Stokes 1739HD Mechanical Booster Pump Combination

Product Information

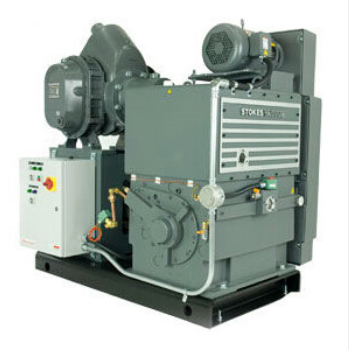

Stokes 1739HD Mechanical Booster Pump Combination 230/460V, 3-ph, 60Hz (230/460V Coil)


Overview

Whether you need to increase the capacity of your existing system or achieve peak performance for a new installation; Edwards makes taking advantage of the latest technology easy. These field-proven pumping systems are the workhorse of countless industrial and large chamber applications. Each Stokes1700 series mechanical booster pump combination includes a Stokes Microvac backing pump and a belt driven, horizontal flow, high vacuum Stokes 6" series mechanical booster pump. In harsh applications where chemical or particulate contamination is present, process isolation boosters are available as an option. Controls for Stokes 1700 series mechanical booster pump combination include a pressure switch, motor starters, overloads, remote booster selection switch and lights for pump running and fault indication.

Multi-stage vacuum systems from Edwards combine a high capacity dry-lobe booster with a Microvac rotary piston pump. These combinations deliver the high capacity needed to achieve faster pump-downs. Most importantly, these systems achieve the task more cost effectively than larger single stage pumps. Depending on the specific application, they can improve blank-off by a factor of ten over large, single stage pumps. Pumping capacities range from 1300 to 7880 ft3min-1.

Technical data

Booster displacement 4420 m3h-1 / 2600 ft3min-1
Booster speed 3600 rpm
Booster orientation Horizontal
Pump displacement 1240 m3h-1 / 730 ft3min-1
Pressure switch required Yes
Normal cut-in pressure 47 mbar / 25 Torr
Continuous operation pressure limit 4 mbar / 3 Torr
Booster drive 18.5 kW / 25 hp
Pump drive (TEFC) 22.5 kW / 30 hp
Inlet connections 8 inch ASA/ANSI flange
Discharge connections 5 inch NPT
Water inlet/outlet connection 1 inch NPT
Recommended cooling flow @ 30ºC/85 ºF 18.9 lmin-1 / 5 galmin-1
Booster oil capacity (V lube H) 1.9 litre / 0.51 US gal
Microvac oil capacity (V lube F) 76 litre / 20 US gal
Weight 3504 kg / 7725 lbs

Localisation : Room 502,No.1299,XinJinQiao RD, Pudong New Area, ShangHai, China., 201206 ShangHai,
Personne à contacter : Kevin Liu, 0086 21 50878197
