Strip Feeding Machine for thermal break profile

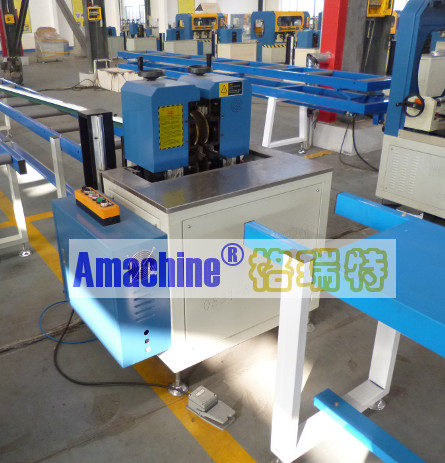

AM-C1240 Strip Feeding Machine
Applications:
Accurately insert the thermal barrier strip into the groove of the knurled alumi num profile.
Features:
Unique feeding unit for thermal barrier strip insertion.
Technical data:
|
Model |
AM-C1240 |
|
Power supply |
380V/50HZ |
|
Total power |
1.28Kw |
|
Air pressure supplied |
0.6-1Mpa |
|
Feeding width |
0-100mm, adjustable |
|
Feeding height |
0-200mm, adjustable |
|
Feeding speed |
110m/min(adjustable) |
|
Strip size allowed |
12-40mm |
|
Overall dimension |
1150x880x1250mm |
|
Weight |
600kg |
