Submersible Level Transmitter

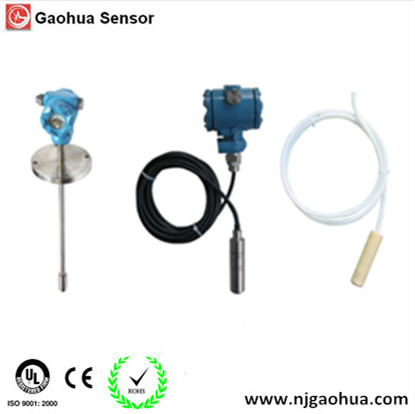

MB260/MB261/MB264 Submersible Level Transmitter
Features
- Separate construction. Full sealed stainless steel
construction for submersible part; sensor and amplifier
circuit are all in the sealed housing; IP68;
- Aluminum-alloy electric connection box is optional to
ease wiring; IP65;
- Removable top stainless steep cap; prevent diaphragm
damage and ease cleaning.
Introduction
The MB260/MB261/MB264 Submersible Level Transmitter adopts high performance pressure sensor as sensing element, which could measure liquid static pressure that is positive proportional to level depth precisely, and transform pressure signal into standard current/voltage signal output by amplifier circuit to measure accurate level depth.The product has high accuracy, compact size, easy installation, can be submersible into the liquid directly to measure level from transmitter bottom to the liquid surface.
It can be widely used for water and level measure and control of petroleum, chemi-industry, power station, city water supply and drainage and hydrology, etc.
The main difference among MB260/MB261/MB264 is the material of the submersible Level casing, MB260 is a universal type with NBR tube; MB261and MB264 are its promotion version for more special measuring medium. MB261 has stainless steel tube protection, MB264 has the anticorrosion tube to prevent from a variety of acid-base or other corrosive liquids.
Specification
Pressure range |
MB260 |
1 2 5 10 20 50 100 200 mH2O |
||||
MB261 |
1 2 5 10 20 50 mH2O |
|||||
MB264 |
1 2 5 10 20 50 100 200 mH2O |
|||||
Measuring Medium |
MB260 |
Liquid, which is compatible with stainless steel. |
||||
MB261 |
Liquid, which is compatible with stainless steel. |
|||||
MB264 |
Variety of acid-base or other corrosive liquid. |
|||||
Overpressure |
200%FS |
|||||
Accuracy |
±0.5%FS(typ.) |
|||||
Transmitting |
2-wires |
3-wires |
||||
Output signal |
4~20mA |
0~5V,1~5V etc. |
||||
Power supply |
24VDC |
|||||
Load(Ω) |
<(U-15)/0.02A</p> |
|||||
Operation ambient temp. |
0~80℃ |
|||||
Storage temp. |
-30~100℃ |
|||||
Medium temp. |
0~120℃ |
|||||
Compensated temp. |
-10~80℃ |
|||||
Material contacting With media |
Housing |
Stainless steel |
Seal part |
Viton |
||
Diaphragm |
Stainless steel 316L |
|||||
Submersible Cable |
MB260 |
NBR |
||||
MB261 |
Stainless steel |
|||||
MB264 |
Anticorrosion tube |
|||||
Protection |
IP68(Sensor part);IP65(Connection box) |
|||||
EX-Proof class |
ExiaⅡCT6 |
For more details, u can contact me by email or skype ( sennie33 )
Welcome to Nanjing Gaohua Technology Co.,ltd !
We are a leading Sensors manufacturer in China for more than 20 years.
Our main products:
Pressure sensor/transmitter/transducer, Automotive/Medical/Industrial pressure sensor, Temperature transmitter, Level sensor, Linear position sensor, Mine-use/Ship-use sensor
If u have any need for Sensors, u can contact me (Sennie) freely.
Contact: senniehs@govagroup.com / senniehs@163.com ( Sennie He )
Website: www.njgaohua.com
Hope we can help u !
High quality, Low cost, Fast delivery, Best service
