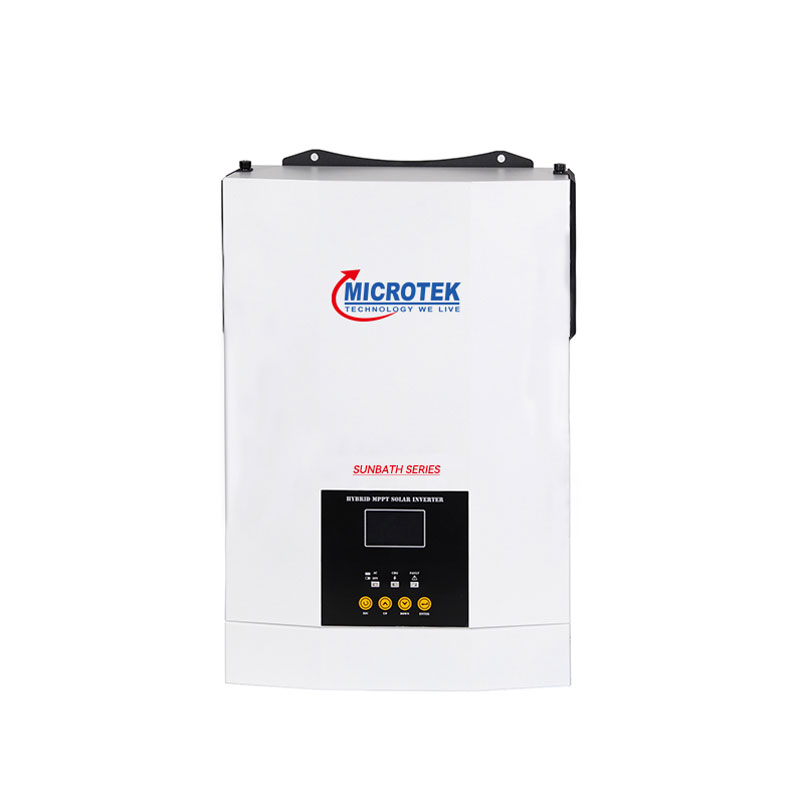

SUNBATH 3.5/5.5KW Off Grid Inverter
SUNBATH series is Microtek's hot-selling model, with mature product technology, built-in MPPT controller up to 100A, can maximize solar energy, and can choose WIFI control function.
Features of SUNBATH 3.5/5.5KW Off Grid Solar Inverter
With High PV Input Voltage Range(120-500VDC).
With WIFI Function Optional.
With Touch Button on the LCD Display.
Efficently work with or without battery.
With 100A MPPT Solar Charge Controller Built-in.
Specifications Of SUNBATH 3.5/5.5KW Off Grid Inverter
|
MODEL |
SUNBATH 3.5KW |
SUNBATH 5.5KW |
|
The rated power |
3500VA/3500W |
5500VA/5500W |
|
INPUT |
|
|
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170-280VAC(UPS); 90-280VAC(Appliances) |
|
|
Frequency Range |
50Hz/60Hz(Auto sensing) |
|
|
OUTPUT |
|
|
|
AC Voltage Regulation(Batt. Mode) |
230VAC±5% |
|
|
Surge Power |
7000VA |
11000VA |
|
Effciency(Peak) |
＞90% |
|
|
Transfer Time |
10ms(UPS); 20ms(Appliances) |
|
|
Wave form |
Pure sine wave |
|
|
No Load Current |
1.0A |
1.1A |
|
BATTERY |
|
|
|
Battery voltage |
24VDC |
48VDC |
|
Low battery alarming voltage |
22.0VDC |
44.0VDC |
|
Low battery cut off protection voltage |
21VDC |
42VDC |
|
Low battery recovery voltage |
23.0VDC |
46.0VDC |
|
Floating Charge Voltage |
27VDC |
54VDC |
|
Overcharge Protection |
32VDC |
64VDC |
|
MPPT SOLAR CHARGER&AC CHARGER |
|
|
|
Maximum PV Array Power |
5000W |
6000W |
|
MPPT Range at Operation Vol. |
120~450VDC |
|
|
Maximum PV Array Open Circuit Vol. |
500VDC |
|
|
Number of MPPT trackers/Max output current |
100A |
|
|
Maximum AC Charge Current |
60A |
|
|
Max mum Charge Current |
100A |
|
|
Max mum Efficiency |
0.98 |
|
|
BEST PANEL CONFIGU TATION |
|
|
|
Best Panel configuration |
300Wp*9pcs*36V(2700Wp) * 2 Parallel |
330Wp*9pcs*36V(2970Wp) * 2 Parallel |
|
PHYSICAL |
|
|
|
Products Dimension,DxWxH(mm) |
481mm*313mm*117mm |
481mm*313mm*117mm |
|
Packing size,DxWxH(mm) |
543mm*394mm*204mm |
543mm*394mm*204mm |
|
Net Weight(kgs) |
9.8KG |
10.5KG |
|
G.W.kg |
11KG |
11.7KG |
|
OPERATING ENVIRONMENT |
|
|
|
Humidity |
5% to 95% Relative Humidity(Non-condensing) |
|
|
Operation Temperature |
0℃-50℃ |
|
Benefits Of Solar Inverter SUNBATH 3.5/5.5KW
WiFi function available.
Touch buttons on LCD display.
Works efficiently with or without battery.
Built in 100A MPPT Solar Charge Controller.
High PV input voltage range (120-500VDC).
How To Use Microtek Best Inverter SUNBATH 3.5/5.5KW?
The working principle of SUNBATH 3.5/5.5KW off-grid solar inverter is that the direct current generated by the solar power panel is converted into alternating current through the external charge and discharge controller.
