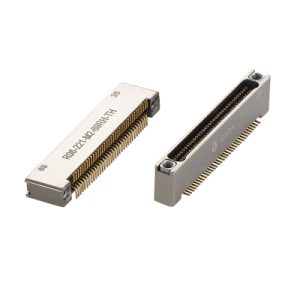

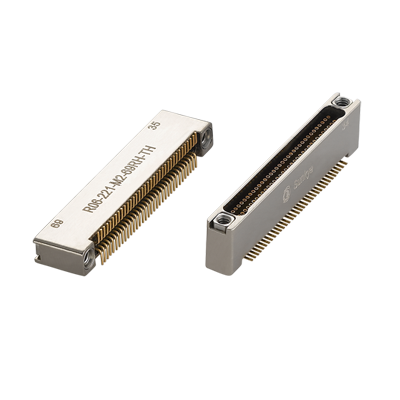

Sunkye R04S Space Grade Micro D Right Angle To PCB Type Connector

Material and Finish of Sunkye R04S Space Grade Micro D Right Angle To PCB Type Connector

Item

Material

Finish

shell

Aluminum alloy

Electroless nickel plating

insulator

20%FPPS

-

seal ring

Silicone rubber

-

contacts

copper alloy

gold plating

locking hardware

stainless steel

passivation

backshell

Aluminum alloy

Electroless nickel plating

Electrical Performance of Sunkye R04S Space Grade Micro D Right Angle To PCB Type Connector

Performance

Marking

Rating Value

Current rating(max)

I

3A (24 #), 13A (16 #)

Dieletric withstanding voltage(sea level)

U

800 Vr.m.x(50Hz)

Contact resistance

R

≤10mΩ (24#), ≤5mΩ (16#)

Insulation resistance(500VDS,sea level)

R

≥5000MΩ

Specification of Sunkye R04S Space Grade Micro D Right Angle To PCB Type Connector

Environment: -55℃ ~+125℃

Contact resistance: ≤ 21mΩ

/

Vibration: 10Hz~ 2000Hz, 294m²/s

Insulation resistance：≥5000MΩ 100VDC

/

Shock: 980m/s² 6ms

Dielectric strength： 250V

EIA-364-28, test condition IV

Rated current: 1A

Machine life： 200 times

/

Random vibration: Power spectral density O.4G²/Hz, root mean square value of total acceleration 23.1G

EIA-364-27, test condition E

Salt spray

96h

EIA-364-26, test condition B

Humidity

240h

ElA-364-31, test condition IV

Thrmal shock

-55°C ~+125°C

EIA-364-32, test condition IV

Contact engaging and separating force

0.3~ 1.5 N (24#)
0.56~ 8.35 N(16#)

/

Irradiation resistant

Total dose: 1X105Gy

/

hermal vacuum outgassing

TML≤1%, CVCM≤0.1%

/

Magnetic permeability

200 gamma

/
