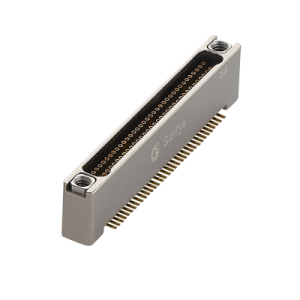

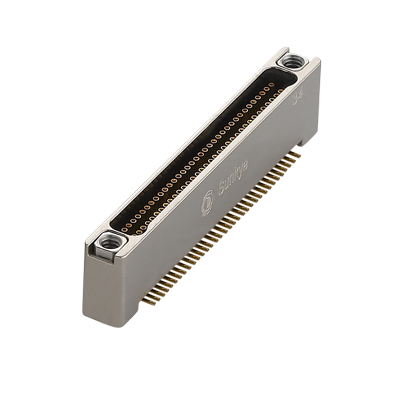

Sunkye R06 MIL-DTL-32139 Nano D-sub SMT type Conectors
Détails
Chine (Rép. pop) Divers
Divers

Sunkye R06 MIL-DTL-32139 Nano D-sub SMT type Conectors

Quantité : Output cap

Contacts: 9, 15, 21 ,25, 31, 37, 51, 65, 69

Twist flexible micro pin (twist pin), 0.635mm pitch, micro miniature outline dimension

Screw nut locking, it is gently when insert and extract, stably locked

Brief introduction of R06 MIL DTL 32139 Nano D-sub SMT type Conectors

Nano d connector is used for all kinds for electric circuit system interconnection which have high density, micro, light, highly reliable requirement, it can meet light and miniaturize demand

Plug with twist pin, receptacle with socket, free terminal with locking screw, fixed terminal with nut, standard mated connector locked by screw and nut

Standard: MIL-DTL-32139

The sectional area of crimp conductive cable is 0.035mm²

Undefined tolerance is±0.13

Specification of R06 MIL-DTL-32139 Nano D-sub SMT type Conectors

Environment temperature： -55℃~+125℃

Contact resistance: ≤ 21mΩ

Vibration： 10Hz~2000Hz, 196m/s²

Insulation resistance：≥ 5000MΩ 100VDC

Shock：980m/s² 6ms

Dielectric strength： 250V

Rated current: 1A

Durability： 200 times

Random vibration： Power spectrum density 0.4G²/Hz, r.m.s value of total acceleration 23.1G

As a specialist in advanced mil spec connectors automotive, Sunkye has extensive experience in micro-miniature and nano miniature solutions based on the highly reliable Twist Pin contact technology. If you want to know more details or want a quotation , just feel free to contact us!

Localisation : Unit 04, 7/F, Bright Way Tower, , Mong KoK Road, Kowloon, HK., 999057 HK,
Personne à contacter : Wang Gloria , +85 2 69 48 67 97
