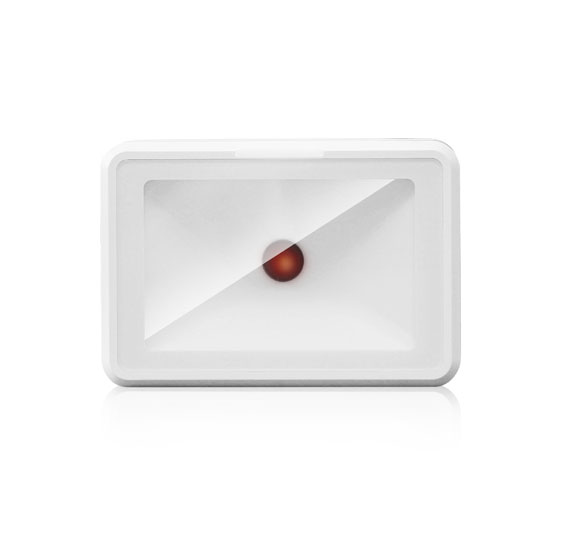

Superlead 7100N Omnidirectional 1D/2D Embedded Barcode Scanner
Omnidirectional reading for all 1D/2D barcodes
Build in RS232 and USB interface
Can read barcode on screen even without backlight from cellphone
Object auto sense of the 2d omni barcode scanner
Super large field of view
Large field of view of the 2d omni barcode scanner
Multiple language barcode message transfer
Details of Superlead 7100N Omnidirectional 1d/2d weight embedded barcode
Professional Mobile Phone Reader
Large Field of View
Specification of Superlead 7100N Omnidirectional 1d/2d Embedded Barcode Scanner
Suzhou SuperMax Smart System Co., Ltd. |
7100N |
|
Physical Characteristics |
||
Dimensions: |
128mm x 88mm x 45mm |
|
Weight: |
230g |
|
Voltage: |
5 VDC |
|
Current: |
200mA |
|
Performance Characteristics |
||
Image (Pixels): |
640 pixels (H)x 480 pixels (V) |
|
Light Source: |
Illumination: 6500K LED |
|
Field of View: |
72° (H) x 64° (V) |
|
Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
|
Print Contrast: |
20% minimum reflective difference |
|
Interfaces Supported: |
USB, RS232 |
|
Motion Tolerances: |
>2m/s |
|
Symbology Decode Capability |
Minimum Resolution: |
≥3.9 mil |
1D: |
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc |
|
2D: |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. |
|
User Environment |
||
Operating Temperature: |
-30°C to 70°C |
|
Storage Temperature: |
-40°C to 150°C |
|
Humidity: |
0% to 95% relative humidity,non-condensing |
|
Shock Specifications: |
Designed to withstand 1.5m(5') drops |
|
Ambient Light Immunity: |
0-100,000 Lux. |
|
Decode Ranges |
||
6.88 mil (PDF417) |
0mm-50mm |
|
10 mil (Data Matrix) |
0mm-50mm |
|
13 mil (UPCA) |
5mm-110mm |
|
20 mil (QR) |
0mm-100mm |
|
Performance may be impacted by bar code quality and environmental conditions. |
SUPERLEAD is a professional barcode scanner supplier, we provide superlead barcode scanner, omnidirectional scanners, omnidirectional scanner, omni directional scanner, omni-directional barcode scanner, smart scanner and etc. For more information, please feel free to contact us!
