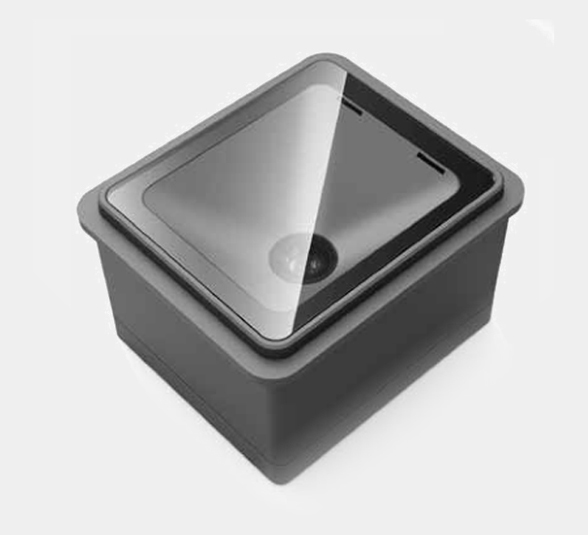

Superlead 7160N Mini Kiosk 2D Barcode Scanner QR Code Scanner
- Large scanning window of the kiosk barcode scanner
- Self-inductive influence reading of the QR code scanner kiosk
- Support sports reading, sensitive scanning
- Support barcode reading without backlight
- 3 working modes ( normal mode, mobile phone model, fast-moving mode )
- Superlead qr code scanner kiosk have Multi-language barcode information direct transmission
Details of Superlead 2D Mini QR Code Kiosk QR Code Scanner Barcode Reader
SuperLead
7160N
Fixed Mount On Screen 2D Barcode Reader
Embedded Code Reader
Sl-h300 series fixed bar code scanner can read the bar code information on the mobile phone screen and paper documents. It is mainly used in electronic voucher, mobile marketing, office automation and other fields
- Object Auto Sense.
- Build in RS232 and USB Interface.
- Omni Directional Reading for all 1D/2D Barcodes.
- Can Read Barcode on Screen Even Without Backlight from Cellphone.
- Multiple Language Barcode Message Transfer.
Specification of Superlead 2D Mini QR Code Kiosk QR Code Scanner Barcode Reader
SuperLead |
7160N |
苏州斯普锐智能系统有限公司 |
技术规格书 |
|
Technical Specification |
Physical Characteristics |
|
尺寸 Dimensions: |
77.5mm x 66mm x 45mm |
重量 Weight: |
75g |
电压Voltage: |
3.3-5 VDC |
电流 Current: |
200mA |
Performance Characteristics |
|
传感器像素Image (Pixels): |
640 pixels (H)x 480 pixels (V) |
光源Light Source: |
Illumination: 6500K LED |
视场角 Field of View: |
72° (H) x 64° (V) |
旋转倾斜偏转Roll/Pitch/Yaw: |
360°, ±65°, ±60° |
打印对k匕度Print Contrast: |
20% minimum reflective difference |
接口支持Interfaces Supported: |
USB, RS232 |
容差Motion Tolerance s: |
>2m/s |
Symbology Decode Capability |
|
一维条码/l-D: |
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal ,etc |
二维条码/2・D: |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc. |
条码精度Minimum Resolution: |
>3.9 mil |
User Environment |
|
工作温度Operating Temperature: |
-30°C to 70°C |
存储温度Storage Temperature: |
-40°C to 150°C |
湿度 Humidity: |
0% to 95% relative humidity,non-condensing |
抗震性Shock Specifications: |
Designed to withstand 1.5m(5' ) drops |
环境光免疫Ambient Light Immunity: |
0-100,000 Lux. |
Decode Ranges |
|
6.88 mil (PDF417) |
0mm-50mm |
10 mil (Data Matrix) |
0mm-50mm |
13 mil (UPCA) |
5mm-110mm |
20 mil (QR) |
Omm-lOOmm |
Performance may be impacted by bar code quality and environmental conditions |
|
|
|
地址:中国-江苏省苏州市工业园区东富路2号东景工业坊57栋 |
In our barcode scanner factory, we have types of Barcode scanner for sale, if you have needs, please contact us.
