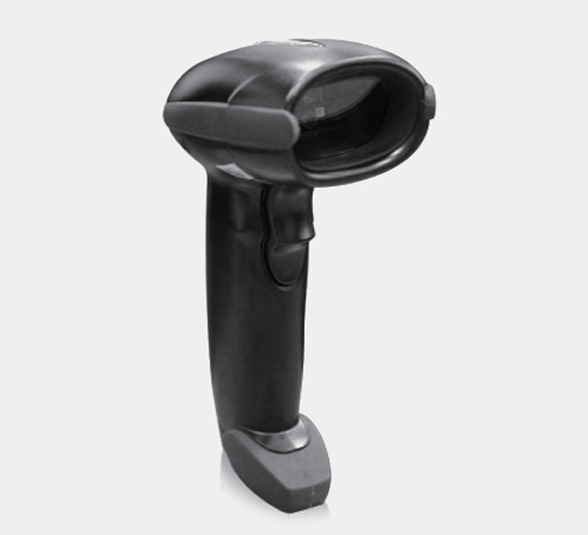

Superlead 8160 IP54 Industrial Level Megapixels DPM 2D Barcode Scanner
- Large scanning window of the dpm barcode scanner
- Self-inductive influence reading of the dpm barcode reader
- Support sports reading, sensitive scanning
- Support barcode reading without backlight
- 3 working modes ( normal mode, mobile phone model, fast-moving mode )
- Multi-language barcode information direct transmission
Details of Superlead 8160 IP54 Industrial Level Megapixels DPM 2d Barcode Scanner
SuperLead
8110HD8120DPM
Area-Imaging Scanner
World Class 2D Code Scanning
- Manual or automatic triggering
- Multiple language barcode message transfer
- Available with a stand option
- Reads bar code reliably off cell phone screens
- Ruggedized design, withstand 6ft. drop to concrete
- Integrated advanced illumination system
- High speed, omnidirectional reading of 1D, 2D, Postal bar codesand OCR
Specification of Superlead 8160 IP54 Industrial Level Megapixels DPM 2d Barcode Scanner
SuperLead |
8110HD8120DPM |
苏州斯普锐智能系统有限公司 |
技术规格书 |
|
Technical Specification |
Physical Characteristics |
|
尺寸 Dimensions: |
170mm x 100mm x 70mm |
重量 Weight: |
206g |
电压 Voltage 电流 Current: |
5V (DC) ± 10% @ 400 mA |
Performance Characteristics |
|
传感器像素Image (Pixels): |
752 pixels (H)x 480 pixels (V) |
光源Light Source: |
Aiming: 617 nm LED; lllumination: 6500K LED |
视场角 Field of View: |
42o(H)x33° (V) |
旋转/倾斜/偏转Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
打印对比度Print Contrast: |
20% minimum reflective difference |
接 口支持Interfaces Supported: |
USB, RS232 |
移动容差Motion Tolerances |
up to 25 in. (63.5 cm) per second |
Symbology Decode Capability |
|
一维条码1-D: |
UPC, EAN, Codel28, Code 39, Code 93, Codell, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc. |
二维条码2-D: |
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc. |
User Environment |
|
工作温度Operating Temperature: |
0°Cto 50°C |
存储温度Storage Temperature: |
-40°C to 70°C |
湿度 Humidity: |
0% to 95% relative humidity,non-condensing |
抗震动Shock Specifications: |
Designed to withstand 1.5m(5') drops |
环境光免疫Ambient Light Immunity: |
100.000 Lux. |
Decode Ranges |
|
5 mil (Code 39) |
20mm-90mm |
13 mil (Upc-a) |
20mm-160mm |
6.8 mil (PDF417) |
0mm-60mm |
10 mil (Data Matrix) |
0mm-80mm |
ID Minimal Resolution |
3mil |
Performance may be impacted by bar code quality and environmental conditions |
|
地址: 中国-江苏省苏州市工业园区东富路2号东景工业坊57栋 |
As a barcode reader supplier, we have types of QR code scanner for sale, if you have needs, please contact us.
