Superlead Presentation Barcode Reader 7708
Super large scanning window
self-induction image reading
Megapixel, scanning sensitive
Support 6m / s sports reading
Low power consumption and powerful performance
Omni-directional Read main 1D,2D barcode
Details of Superlead Bioptical Optical Bar Reader 7708
New hardware upgrade, equipped with 1.38 million pixel scanning lens.
Super large scanning window, no need to focus, self-induction image reading.
Big vision sensor, large reading range, Easy to read long bar code
Support sports reading, up to 6M/S, sensitive scanning
Support barcode reading without backlight
Multi-languages direct transfer.

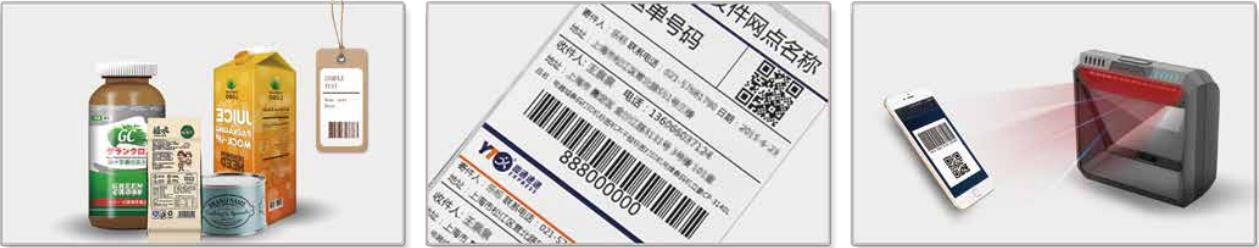

The optical barcode scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc.
Application scenarios
shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc
Specification of Superlead Bioptical Barcode Reader 7708
|
Suzhou SuperMax Smart System Co., Ltd. |
7708 |
|
|
Technical Specification |
||
|
Physical Characteristics |
||
|
Dimensions: |
152mm x 149mm x 80mm |
|
|
Weight: |
376g |
|
|
Voltage: |
5 VDC |
|
|
Current: |
500mA(Operating) |
|
|
Performance Characteristics |
||
|
Image(Pixels): |
1280 p(H) x 1080 p(V) |
|
|
Light Source: |
illumination: 617nm RED LED |
|
|
Fielg of View: |
45° (H) x 35° (V) |
|
|
Roll/Pitch/Yaw: |
Pitch ±65° /Yaw 360° /Roll ±60° |
|
|
Motion Tolerances: |
max. 6m/s / up to 6 meters per second |
|
|
Print Contrast: |
≥25% |
|
|
Interfaces Supported: |
USB, RS232 |
|
|
Minimal Resolution: |
4mil |
|
|
Decode Capability: |
1-D: |
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc. |
|
2-D: |
QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc. |
|
|
User Environment |
||
|
Operating Temperature: |
0℃-50℃ |
|
|
Storage Temperature: |
-40℃-70℃ |
|
|
Humidity: |
0% to 95% relative humidity, non-condensing |
|
|
Shock Specifications: |
Designed to withstand 1.2m (5') drops |
|
|
Ambient Light lmmunity: |
100.000 Lux. |
|
|
Decode Ranges |
||
|
Code 39 (5mil): |
0mm-60mm |
|
|
100% UPC-A (13mil): |
0mm-200mm |
|
|
Performance may be impacted by bar code quality and environmental conditions. |
||
Superlead scanner was founded in 2012, based in Suzhou. Superlead barcode scanner factory have a 60-people R&D team that has researching & developing experience in barcode scanners more than 15 years. Meanwhile, we manufacture and sell the products to Asian, American-European and Middle-eastern Market.
