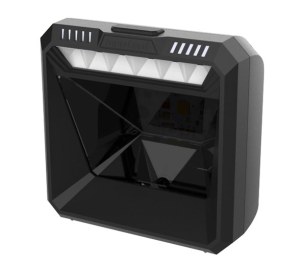

Superlead Presentation Barcode Reader 7708
Super large scanning window
self-induction image reading
Megapixel, scanning sensitive
Support 6m / s sports reading
Low power consumption and powerful performance
Omni-directional Read main 1D,2D barcode
Details of Superlead optical barcode reader 7708
New hardware upgrade, equipped with 1.38 million pixel scanning lens.
Super large scanning window, no need to focus, self-induction image reading.
Big vision sensor, large reading range, Easy to read long bar code
Support sports reading, up to 6M/S, sensitive scanning
Support barcode reading without backlight
Multi-languages direct transfer.
The optical barcode scanner can scan 1D/2D barcodes, support screen codes, as : packaging, labels, express waybill, wechat, alipay, etc.
Application scenarios
shopping malls, supermarkets, restaurants, tea shops, small and micro stores, warehousing and logistics, customer service front desk, etc
Specification of Superlead optical bar reader7708
|
Suzhou SuperMax Smart System Co., Ltd. |
7708 |
|
|
Physical Characteristics |
||
|
Dimensions: |
152mm x 149mm x 80mm |
|
|
Weight: |
376g |
|
|
Voltage: |
5 VDC |
|
|
Current: |
500mA(Operating) |
|
|
Performance Characteristics |
||
|
Image(Pixels): |
1280 p(H) x 1080 p(V) |
|
|
Light Source: |
illumination: 617nm RED LED |
|
|
Fielg of View: |
45° (H) x 35° (V) |
|
|
Roll/Pitch/Yaw: |
Pitch ±65° /Yaw 360° /Roll ±60° |
|
|
Motion Tolerances: |
max. 6m/s / up to 6 meters per second |
|
|
Print Contrast: |
≥25% |
|
|
Interfaces Supported: |
USB, RS232 |
|
|
Minimal Resolution: |
4mil |
|
|
Decode Capability: |
1-D: |
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, etc. |
|
2-D: |
QR Code, MicroQR, PDF417, MicroPDF417, Data Matrix, Maxicode, Aztec, etc. |
|
|
User Environment |
||
|
Operating Temperature: |
0℃-50℃ |
|
|
Storage Temperature: |
-40℃-70℃ |
|
|
Humidity: |
0% to 95% relative humidity, non-condensing |
|
|
Shock Specifications: |
Designed to withstand 1.2m (5') drops |
|
|
Ambient Light lmmunity: |
100.000 Lux. |
|
|
Decode Ranges |
||
|
Code 39 (5mil): |
0mm-60mm |
|
|
100% UPC-A (13mil): |
0mm-200mm |
|
|
Performance may be impacted by bar code quality and environmental conditions. |
||
Superlead, as an excellent barcode scanner company, offers a wide range of 2d barcode scanner for you to choose from.
