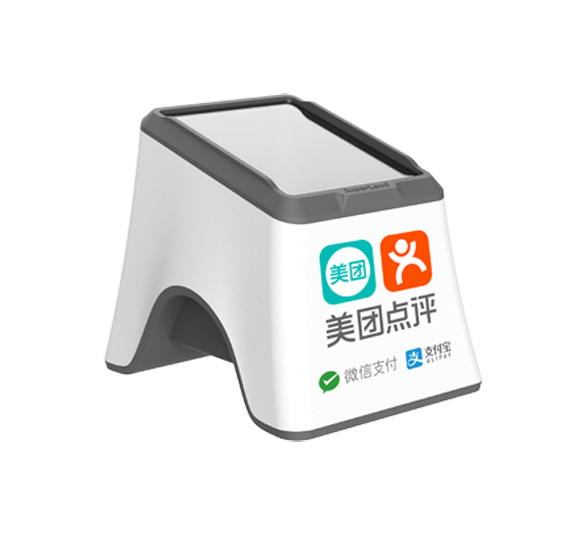

Superlead QR Code Reading Small White Box 7180

Suzhou SuperMax Smart System Co., Ltd.

7180

Technical Specification

Physical Characteristics

Dimensions:

135mm x 105mm x 100mm

Weight:

305g

Voltage:

5 VDC

Working Current:

300mA

Standby Current:

100mA

Peak Current:

350mA

Performance Characteristics

Image (Pixels):

640 pixels (H)x 480 pixels (V)

Light Source:

Illumination: 6500K LED

Field of View:

40.5° (H) x 31° (V)

Roll / Pitch / Yaw:

360°, ±65°, ±60°

Print Contrast:

20% minimum reflective difference

Motion Tolerances

>2m/s

Interfaces Supported:

USB, RS232

Symbology Decode Capability

1-D:

UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabar Interleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc.

2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec Hanxin, etc.

Minimum Resolution

≥3.9 mil

User Environment

Operating Temperature:

-20°C to 50°C

Storage Temperature:

-30°C to 80°C

Humidity:

0% to 95% relative humidity, non-condensing

Shock Specifications:

Designed to withstand 1.5m(5') drops

Ambient Light Immunity:

0-100,000 Lux.

Decode Ranges

6.88 mil (PDF417)

0mm-50mm

13 mil (100%Upca)

5mm-110mm

20 mil (QR)

0mm-100mm

Performance may be impacted by bar code quality and environmental conditions
