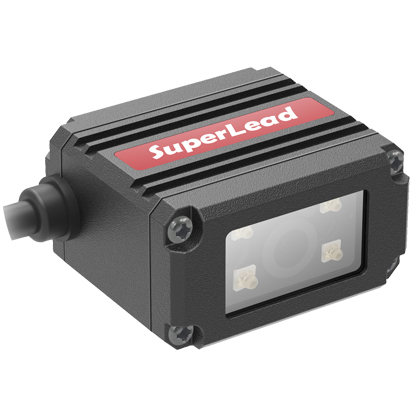

Superlead X23 IP65 60FPS 2D Barcode Scanner Support USB/RS232/TCP/DUP/Modbus
Fastest decoding speed 2M/S
The new high-performance chip makes the decoding "upgrade"
Multiple complex application scenarios
Rich modular accessories
Large scanning window of the 2d barcode scanner rs232 usb
Self-inductive influence reading
Support sports reading, sensitive scanning
Support barcode reading without backlight
3 working modes ( normal mode, mobile phone model, fast-moving mode )
Multi-language barcode information direct transmission
Details of Super lead X23 IP65 60FPS 2d Barcode Scanner Support USB/RS232/TCP/DUP/Modbus
SuperLead
6200
Fixed Mount On Screen 2D Barcode Reader
Industrial-grade Metal Casing
Easy to Integrate
Multiple language barcode message transfer
Miniature-easy to integrate
Support RS232 and USB interface
Read barcode off cell phone screens
Object auto sense
Industrial leading scan platform
High speed, Omni directional scanning
Read all mainstream 1D/2D barcodes
Specification of Super lead X23 IP65 60FPS 2D Barcode Scanner Support USB/RS232/TCP/DUP/Modbus
|
Suzhou SuperMax Smart System Co., Ltd. |
X23 |
|
|
Technical Specification |
||
|
Physical Characteristics |
||
|
Dimensions |
36mm x 40mm x22mm |
|
|
Weight |
92g |
|
|
Shell Material |
Zinc Alloy |
|
|
Power Supply |
5-36VDC (Support USB power supply） |
|
|
Power Waste |
2.3W max |
|
|
Performance Characteristics |
||
|
Sensor Pixels |
Global shutter，640x480，60FPS |
|
|
Light Source Illumination |
Highlight red light source, highlight blue light source, highlight white light source |
|
|
Field of View Angle |
N：40° L：22° |
|
|
Region Decoding |
Support decoding of 8 ROI regions |
|
|
Motion Tolerance |
2m/s |
|
|
External Input |
1 circuit photoelectric isolation input, which can be connected to NPN/PNP/relay |
|
|
External Output |
1 circuit photoelectric isolation output |
|
|
Communication Interface |
RS232, USB2.0, Ethernet（TCP/IP） |
|
|
Symbology Decode Capability |
2-D |
QR, DataMatrix, PDF417, Aztec |
|
1-D |
Code128, Code93, Code39, Interleaved 2 of 5, Industrial 2 of 5, IAN/EAN/UPC |
|
|
User Environment |
||
|
Working Temperature |
0℃~50℃ |
|
|
Storage Temperature |
-20℃~70℃ |
|
|
ESD Protection |
Contact discharge: 15KV, coupling discharge: 20KV+ |
|
|
Enclosure Protection |
IP65 |
|
|
Drop |
1.2m cement floor, free fall, 6 sides x 5 times=30 times |
|
|
Environmental Photoimmunity |
100 000Lux |
|
As one of barcode reader manufacturers, we will do our best to meet all the needs of customers.
