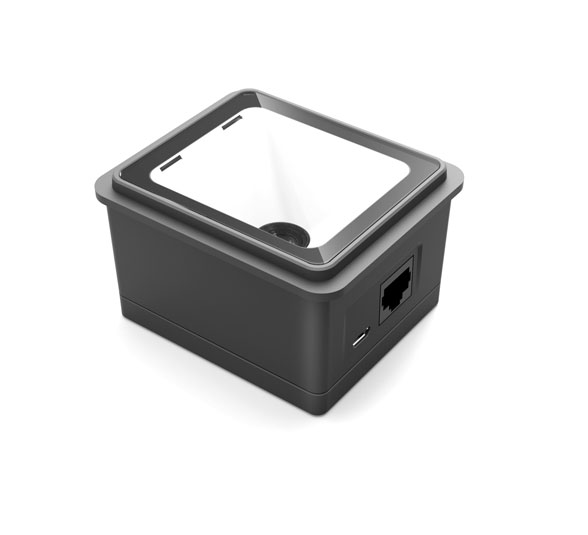

Superled 7161WP IP54 Water Proof Embedded 2D Barcode Scanner
7161 is the standard version
7161wp protection grade IP54
7167wp protection grade IP67 + NFC function
Details of Superled 7161WP IP54 Water Proof Embedded Barcode Scanner
Embedded Code Reader
Omni Directional Reading for all 1D/2D Barcodes.
Build in RS232 and USB Interface.
Can Read Barcode on Screen Even Without Backlight from Cellphone.
Object Auto Sense of the waterproof scanner.
Multiple Language Barcode Message Transfer.
Application scenarios
bus, subway, light rail, toll station, payment machine, parking lot, aviation, etc
Specification of Superled 7161WP IP54 Water Proof Embedded 2d Barcode Scanner
|
Suzhou SuperMax Smart System Co., Ltd. |
7161WP |
|
|
Technical Specification |
||
|
Physical Characteristics |
||
|
Dimensions: |
77.5mm x 66mm x 45mm |
|
|
Weight: |
75g |
|
|
Voltage: |
3.3-5 VDC |
|
|
Current: |
200mA |
|
|
Performance Characteristics |
||
|
Image (Pixels): |
752 pixels (H)x 480 pixels (V) |
|
|
Light Source: |
illumination: 6500K LED |
|
|
Field of View: |
80°(H)x 64°(V) |
|
|
Roll / Pitch / Yaw: |
360°, ±65°, ±60° |
|
|
Print Contrast: |
20% minimum reflective difference |
|
|
Interfaces Supported: |
USB, RS232 |
|
|
Motion Tolerances: |
>2.5m/s |
|
|
Symbology Decode Capability |
1-D: |
UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5, Codabarlnterleaved 2 of 5, Mis Plessey, GSI DataBar, China Postal, Korean Postal, etc |
|
2-D: |
PDF417, MicroPDF417, Data Matrix, Maxicode Hanxin, etc. |
|
|
Minimum Resolution: |
≥3.9 mil |
|
|
Average decode time: |
35ms (300 byte QR code); 45ms (450 byte QR code) |
|
|
User Environment |
||
|
Operating Temperature: |
-40°C to 70°c |
|
|
Storage Temperature: |
-50°C to 85C |
|
|
Humidity: |
0% to 95% relative humidity, non-condensing |
|
|
Shock Specifications: |
Designed to withstand 1.5m(5') drops |
|
|
Ambient Light lmmunity: |
0-100,000 Lux. |
|
|
Decode Ranges |
||
|
6.88 mil (PDF417) |
0mm-50mm |
|
|
10 mil (Data Matrix) |
0mm-50mm |
|
|
13 mil (UPCA) |
5mm-110mm |
|
|
20 mil (QR) |
0mm-100mm |
|
|
Performance may be impacted by bar code quality and environmental conditions. |
||
Now the price of superlead barcode scanner is reasonable, if you have needs, please contact us.
