Supply ADSS Flat Drop Cable 12-24 fibers Self-Supporting GYFXTY
Quantité : 2500km/wee Prix : <$200
Description:

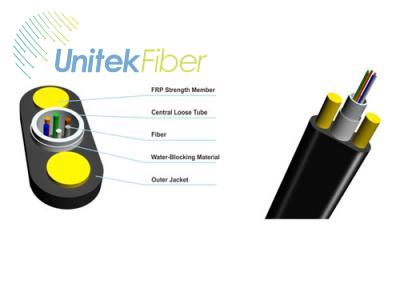

UnitekFiber supply flat drop fiber cable, this cable also can be called as a small span of ADSS fiber cable to apply in a small span of ADSS installation system. The structure of flat drop cable is central loose tube, Kevlar and glass yarn is usually used as reinforcement in the tube.
The cable filling is to prevent water and moisture. And the ripcord is for peeling sheath easily. There are FRP strength members between the central tube for self-supporting system. The outer sheath is LSZH or MDPE material.
Features:
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Applications:
Adopted to Outdoor Aerial, Duct installation
Adopted to trunk power transmission system.
Access network and local network
Product Parameter
|
No. of cable |
1 |
|||
|
Fiber Model |
G.652D |
|||
|
subelement |
Tight line |
Material |
PVC |
|
|
Thickness |
0.32（±0.05）mm |
|||
|
Diameter |
0.9（±0.1）mm |
|||
|
Strength Member |
Material |
Aramid Yarn |
||
|
Inner Sheath |
Material |
LSZH |
||
|
Thickness |
0.45（±0.05）mm |
|||
|
Diameter |
2.9（±0.1）mm |
|||
|
Color |
White |
|||
|
Strength Member |
Material |
FRP |
||
|
Diameter |
1.5（±0.05）mm |
|||
|
No. |
2 |
|||
|
Water Blocking Layer(Material) |
Special Water Blocking material used for Effecive water blocking and ease of installation |
|||
|
Ripcord(Material) |
Nylon |
|||
|
Outer Sheath |
Material |
MDPE |
||
|
Color |
Black |
|||
|
Cable Diameter |
(4.5±0.2)×(8.1±0.2)mm |
|||
|
Cable Wetght |
31 (± 2) kg / km |
|||
|
Max. allowable tension （Short-term） |
1350N |
|||
|
Max. allowable tension （Long-term） |
300N |
|||
|
Crush resistance test |
2000N/10cm |
|||
|
Min. bending radius |
Static |
100mm |
||
|
dynamic |
150mm |
|||
|
Temperature range (°C) |
Installation |
-30~+60 |
||
|
Transport&Storage |
-40~+75 |
|||
|
Operation |
-40~+70 |
|||
Personne à contacter : Wang Catherine, 86 0755 23157590
