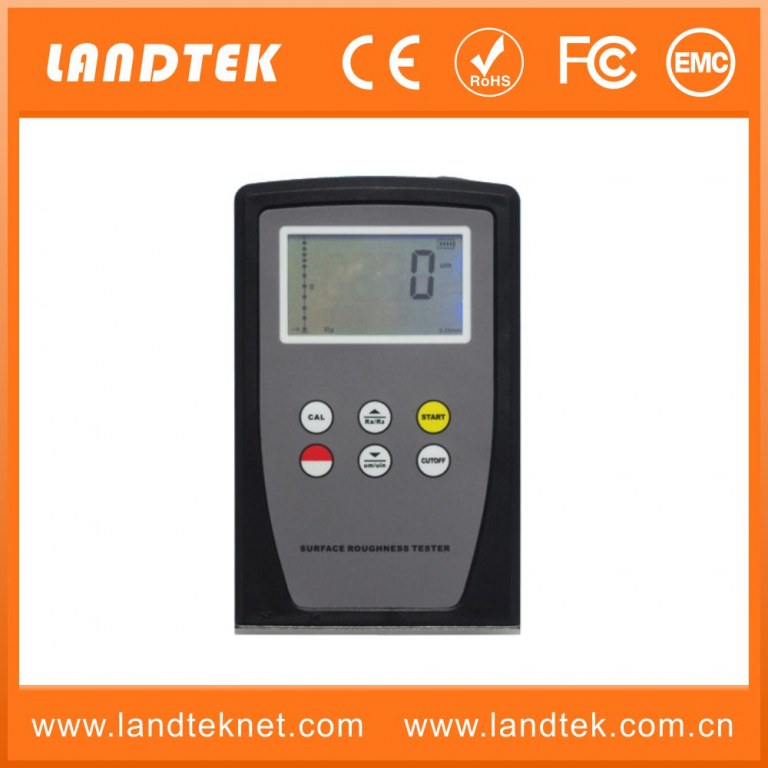

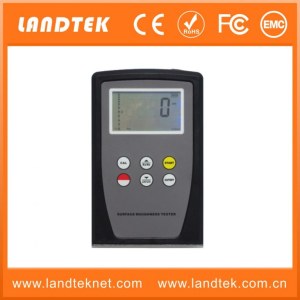

Surface Roughness Tester SRT-6100
Quantité : 1 Prix : $1
Applications:
Measure surface roughness of: various machinery-processed parts.
Calculate correspondingparameters according to selected measuring conditions and clearly display all measurement parameters.
Features:
* Be compatible with four standards of ISO, DIN, ANSI and JIS.
* Multiple parameter measurement: Ra, Rz.
* Use USB data output and RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Details:
| Display | 4 digits, 10 mm LCD, with blue backlight | |
| Parameters | Ra、Rz | |
| Measuring Range
|
Ra: 0.05~10.00 um
Rz: 0.1~50.0 um
|
|
| Accuracy | ≤ ± 15% | |
| Fluctuation of display value | Not more than 10% | |
| Sensor | Test Principle | Inductance type |
| Radius of Probe Pin | 10 um | |
| Material of Probe Pin | Diamond | |
| Measurement Force of Probe | 16 mN（1.6 gf） | |
| Probe Angle | 90° | |
| Vertical Radius of Guiding Head | 48 mm | |
| Maximum driving stroke | 12.5 mm / 0.5 inch | |
| Cutoff length (l) | 0.25 mm / 0.8 mm / 2.5 mm optional | |
| Driving speed | Sampling | When Length = 0.25 mm, Vt = 0.135 mm/s |
| When Length = 0.8 mm, Vt = 0.5 mm/s | ||
| When Length = 2.5 mm, Vt = 1 mm/s | ||
| Returning | Vt = 1 mm/s | |
| Resolution | 0.001 um, if reading ＜ 10um | |
| 0.01 um, if 10um ≤ reading ≤ 100um | ||
| 0.1 um, if reading ≥ 100um | ||
| Evaluation length | 1~2 L optional | |
| Auto Power Off | ||
| Operating conditions | Temperature: 0~50 ℃ Humidity: ＜ 80 %RH | |
| Power Supply | 4 x 1.5v AA size (UM-3) battery | |
| Dimensions | 128 × 80 × 30 mm | |
| Weight | 280 g | |
For more details,please do not hesitate to contact us.Thank you!
Personne à contacter : Lisa Li, +86 20 81609116
