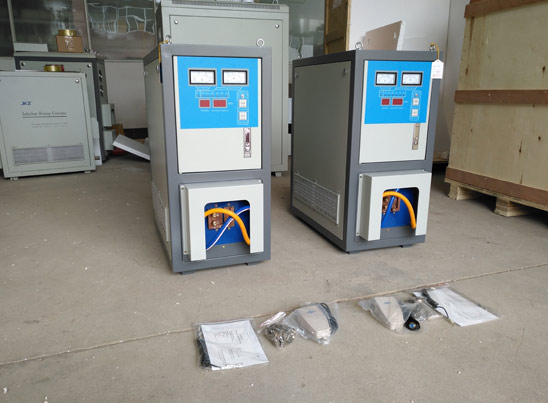

SWS-25A 15-30KHZ 25KW 36A Ultrasonic Frequency Induction Heating Machine
To realize the better performance of SWS-25A, JKZ has designed a fully digital control induction heating generator at the frequency range of 15~30KHz. It is designed with a maximum single machine power of 250KW and can be integrated with a state monitoring system. After a long time of production and use, the circuit of our SWS-25A is still reliable and stable, and the maintenance is simple and convenient.
The induction heating speed of this metal heating machine is fast and the energy-saving effect is obvious. The equipment can be equipped with a variety of remote control methods, which significantly reduces the difficulty of automatic control. It runs fully automatically under the control of external systems such as PLC and is suitable for use in induction forging and induction heat treatment applications.
Specifications of SWS-25A Ultrasonic Frequency Induction Heating Machine
Input voltage |
3 Phases 380V±10% 50/60HZ |
Input AC current |
36A |
Output power |
25KW |
Output frequency |
15-30KHZ |
Duty cycle |
100% |
Power factor |
≥95% |
Cooling water pressure |
0.2-0.3 MPa |
Cooling water flow |
≥1.7 m³/Hour |
Application of SWS-25kw induction heater
Brazing of carbide length 20-60mm
Welding of copper tube Ø15mm-Ø30mm
Melting of 15-20KG non-ferrous metal
Forging heating steel rods Ø10-30mm
Hardening steel rods Ø10-30mm at depth 2-5mm
JKZ is a professional induction heating manufacturer, we provide induction machine, induction heating unit, swp 300, etc. Contact us to buy induction heating products .
