T Series Rental LED Display
Quantité : 2000sqm/mo Prix : 500~2000usd/sqm
We have indoor advertising led display for sale!
TI2.6 | TI2.8 | TI2.9 | TI3.9 | TI4.8 | TI5.9 | TI6.2 TO3.9 | TO4.8 | TO5.9 | TO6.2
Full Front Maintenance
Curved Installation
No Light Leakage
Climbing support
Light and Thin
Parameter
|
T Series Outdoor |
TO 3.9 |
TO 4.8 |
TO 5.9 |
TO 6.2 |
|
Pixel Pitch(mm) |
3.91mm |
4.81mm |
5.95mm |
6.25mm |
|
Pixel Matrix Per Sq.m |
65536 |
43264 |
28224 |
25600 |
|
Pixel Configuration |
SMD1921 |
SMD2727 / 1921 |
SMD3535 |
SMD3535 |
|
Brightness (nights) |
≥4000 |
≥4500 |
≥4500 |
≥4000 |
|
Scan |
1/16 |
1/13 |
1/7 |
1/10 |
|
Cabinet Resolution |
128 × 256 |
104 × 208 |
84 × 168 |
80 × 160 |
|
Power Con. (Max / Avg) |
750/ 230 w/sq.m |
700 / 220 w/sq.m |
700 / 220 w/sq.m |
710/ 210 w/sq.m |
|
Module Dimension |
250x250mm / 0.82x0.82ft |
|||
|
Cabinet Dimension |
500x1000x80mm / 1.64x3.28x0.26ft |
|||
|
Cabinet Weight |
13kg / 28.66Ib (( Die-casting Aluminum) |
|||
|
Service Access |
Front / Rear |
|||
|
Rotation Angle |
-10° and +10° |
|||
|
Refresh Rate (HZ) |
1920 |
|||
|
Grey Scale (bit) |
16 |
|||
|
Viewing Angle (H/V) |
160/160 |
|||
|
IP Rate |
IP65 |
|||
|
Input Voltage (AC) |
110/240 |
|||
|
T Series Indoor |
TI 2.8 |
TI 2.9 |
TI 3.9 |
TI 4.8 |
TI 5.9 |
TI 6.2 |
|
Pixel Pitch(mm) |
2.84mm |
2.976mm |
3.91mm |
4.81mm |
5.95mm |
6.25mm |
|
Pixel Matrix Per Sq.m |
123904 |
112896 |
65536 |
43264 |
28224 |
25600 |
|
Pixel Configuration |
SMD2121 |
SMD2121 |
SMD2121 |
SMD2121 |
SMD3528 |
SMD3528 |
|
Scan |
1/22 |
1/28 |
1/16 |
1/13 |
1/7 |
1/10 |
|
Cabinet Resolution |
176 × 352 |
168 × 336 |
128 × 256 |
104 × 208 |
84 × 168 |
80 × 160 |
|
Power Con. (Max / Avg) |
800 / 250w/sq.m |
780 / 240w/sq.m |
700 / 220w/sq.m |
680 / 200w/sq.m |
680 / 200w/sq.m |
700 / 210w/sq.m |
|
Module Dimension |
250x250mm / 0.82x0.82ft |
|||||
|
Cabinet Dimension |
500x1000x80mm / 1.64x3.28x0.26ft |
|||||
|
Cabinet Weight |
13kg / 28.66Ib (( Die-casting Aluminum) |
|||||
|
Service Access |
Front / Rear |
|||||
|
Rotation Angle |
-10° and +10° |
|||||
|
Brightness (nights) |
≥1000 |
|||||
|
Refresh Rate (HZ) |
3840 |
|||||
|
Grey Scale (bit) |
16 |
|||||
|
Viewing Angle (H/V) |
160/160 |
|||||
|
IP Rate |
IP31 |
|||||
|
Input Voltage (AC) |
110/240 |
|||||
* Specifications and photos are subject to change without prior notice.

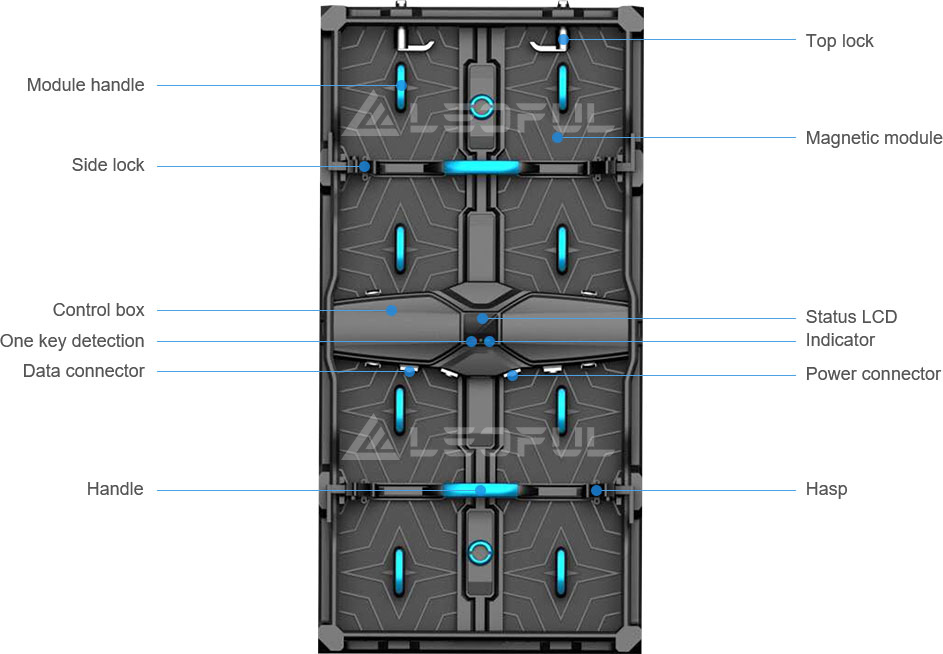

Full Front Maintenance
LED modules, receiver card, hub card, power supply, cables, etc are all front service.
Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
No light leakage trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
LEDFUL, founded in 2008, is a professional led display company in China. We are devoted to providing outdoor advertising led. And we welcome merchants from all over the world to cooperate with our factory for mutual benefit and win-win, and jointly create a better future.
