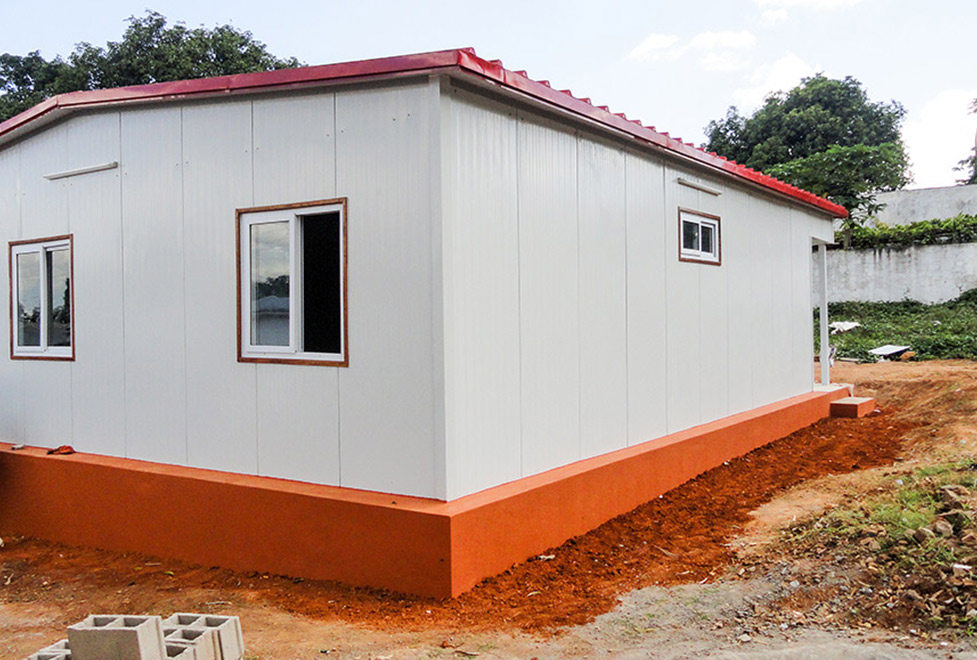

T Type Steel Prefab House

No.

Sort

Name

Specification

1

Product Type

Degree of Standardization

custom-made product, designed and manufactured according to clients' requirement

2

Size

Length (m):

No limited, increase expansion joint when length more than 200m.

3

Width(m):

single span should be less than 12m, an arbitrary width could make by union spans

4

Heigth(m):

single floor≤5m, two or three floors, average height ≤4m

5

Roof slope:

slope is 1: 10~1: 5

6

Floors:

less than 3 floors

7

Standard equipment

Ground channel

Galvanized steel panel compression, thickness is 0.8mm

8

Post

Inside post is steel square pipe, the material is Q235, components surface make antirust process, and decorate with color steel compression parts.

9

Roof beam

roof truss consists of thin sharp steel by welding, component surface make the antirust process

10

Purlin

purlin is Ctype steel, the material is Q235, components' surface makes an antirust process.

11

Wall beam

wall beam is Ctype steel or square pipe, the material is Q235, component surface make the antirust process

12

Floor

made of floor master beam, secondary beam, and floor surface plate(plywood)

13

wallboard

50~150mm thickness double surface color steel sandwich panel, white color

14

roof board

50~150mm thickness double surface color steel corrugated sandwich panel, blue or red color

15

door

color steel sandwich panel door,size: 750mm*2000mm;

16

window

PVC sliding window, with steel screen.

17

Options

Ceiling

mineral wool acoustic panel, aluminum buckle panel, PVC ceiling

18

Elevation floor

Design based on local weather conditions.

19

Canopy

color steel sheet or color steel sandwich panel canopy

20

door

compound wooden door, security door, aluminum alloy door

21

Electrical accessories

Supply plan, design, and construction according to relevant national norms(220V,50Hz, with lamp, switches, and multi-function sockets.)

22

Water plumbing accessories

Supply plan, design, and construction according to relevant national norms

23

Sanitary ware

Supply according to customer needs

24

Furniture and electric appliance

Supply according to customer needs

25

Design technical data

Roof dead load

0.3KN/sqm

26

Roof live load

0.5KN/sqm

27

Floor dead load

0.5KN/sqm

28

Floor live load

2KN/sqm

29

Wind load

12degree,120km/h(strengthen the steel frame when the wind is bigger than this data)

30

Earthquake resistant intensity

8 degree

31

Used for temperature

Celsius: from -25 to+50 (change the design when the temperature is lower than Celsius -25)

32

Installation

Installation tools

electric drill, electric hammer,spanner,screwdriver,pulling rivet etc, house installation need electric power.

33

Installation efficiency

Four skilled labor one day can erect 40m2's house body

34

Transport

container

each 40ft container could load 130~150Sqm house body material
