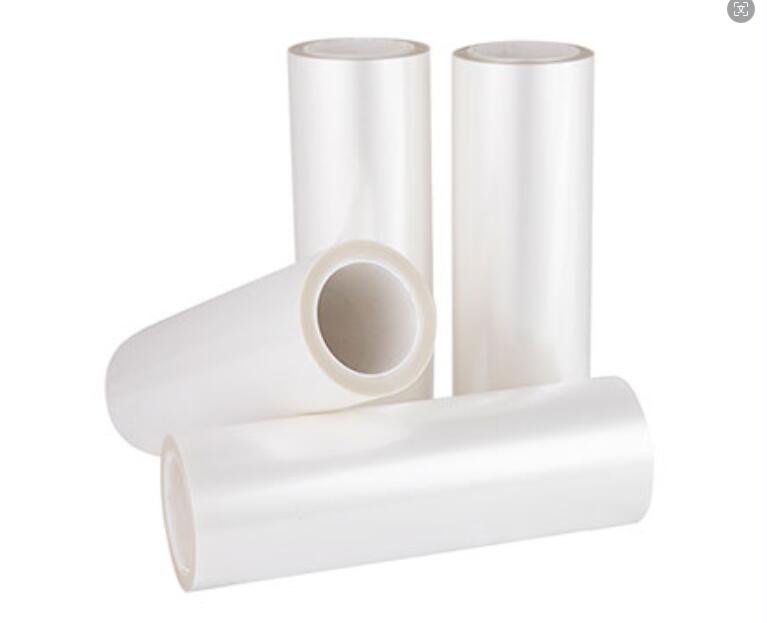

T101D Transparent PET Film
T101D is a transparent polyester film with high transparency and excellent mechanical properties. It offers good chemical and corrosion resistance, as well as superior dimensional stability. This film is widely used in various applications, such as lamination, printing, and packaging.
Product Performance Features
Good transparency and luster.
Good air tightness and incense retention.
Good aluminum plating and prnting properties.
Specifications of T101D Transparent PET Film
|
Thickness |
Width |
Roll Core Inner Diameter |
|
12um~100um |
Can Be Customized |
Small: 76mm Large: 152mm |
Note:
Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.
T101D Transparent PET Film Typical Physical Performance
|
Project |
|
Unit |
Detection Value |
Detection Method |
|
|
Thickness |
|
um |
12~38 |
50~100 |
GB/T13542.2 |
|
Mean Thickness Deviation |
|
um |
±2% |
±3% |
|
|
Tensile Strength |
MD |
Mpa |
MD≥150 |
MD≥150 |
GB/T13542.2 |
|
TD |
Mpa |
TD≥170 |
TD≥170 |
||
|
Breaking Elongation |
MD |
% |
60≤MD≤180 |
70≤MD≤180 |
GB/T13542.2 |
|
TD |
% |
60≤TD≤180 |
70≤TD≤180 |
||
|
Thermal Shrinkage 150'C/30 min |
MD |
% |
0≤MD≤1.5 |
0≤MD≤1.3 |
GB/T13542.2 |
|
TD |
% |
-0.5≤TD≤0.3 |
-0.5≤TD≤0.3 |
||
|
Transmittance |
|
% |
84~92 |
85~90 |
GB/T2410 |
|
The Fog Degree |
|
% |
1.0~3.0 |
1.5~7 |
|
|
Wetting Tension |
have |
mN/m |
≥56 |
GB/T14216 |
|
|
Non |
mN/m |
≥38 |
|||
Note:
1. MD means longitudinal tensile, TD meanstransverse tensile
2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements
Applications of T101D Polyester Transparency Film
High fog film is mainly used in electromechanical, electronic ,information and communication, food packaging, tape blackslip paper, reflective materials, electro-acoustic equipmenttape and flexible circuit board, etc.
Now the price of polyester film china is reasonable, anything you need, please contact us.
